Description
Katool KT-H105 · 10,000 LB Base-Plate Lift

A 10,000 lb Two-Post Lift With Nothing Overhead

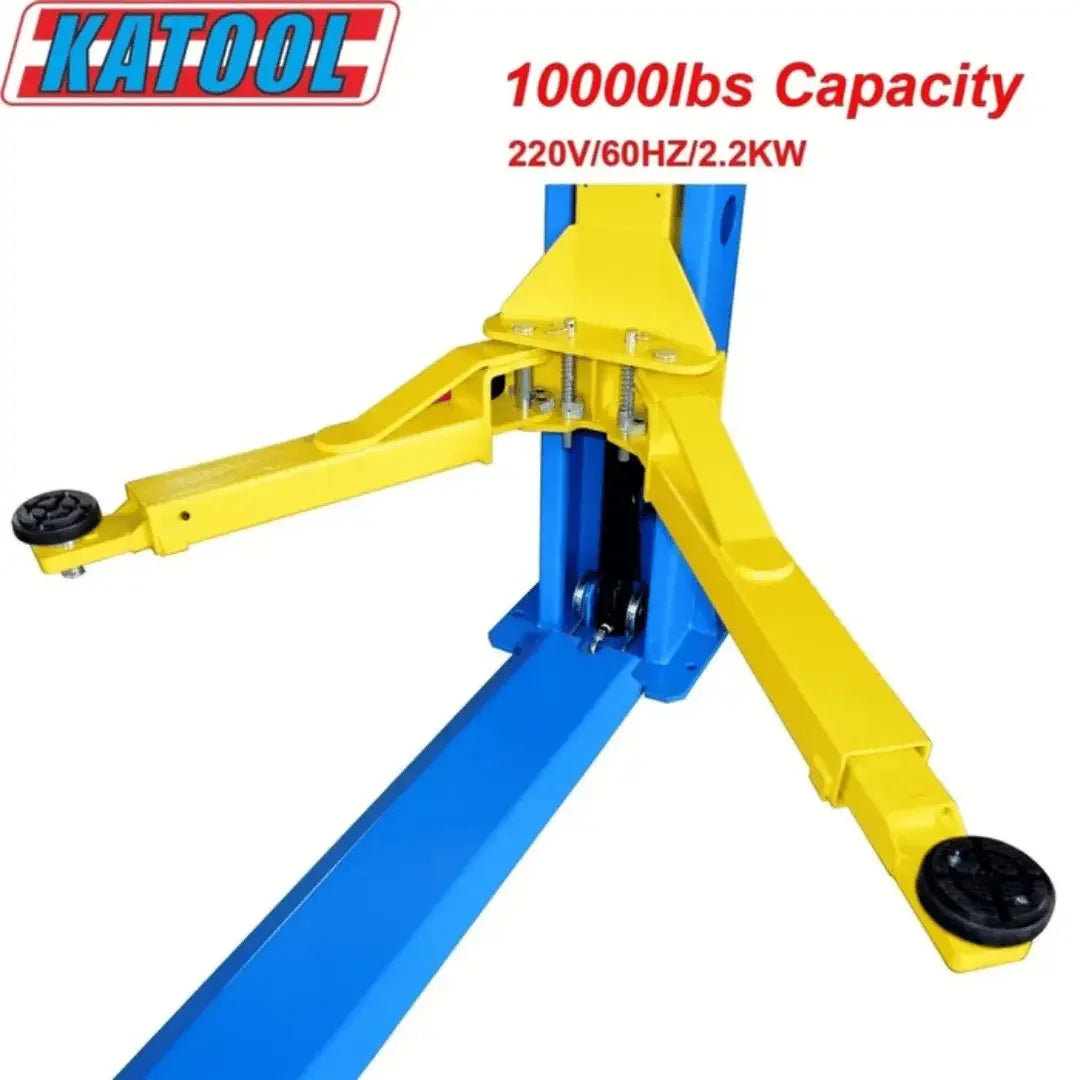

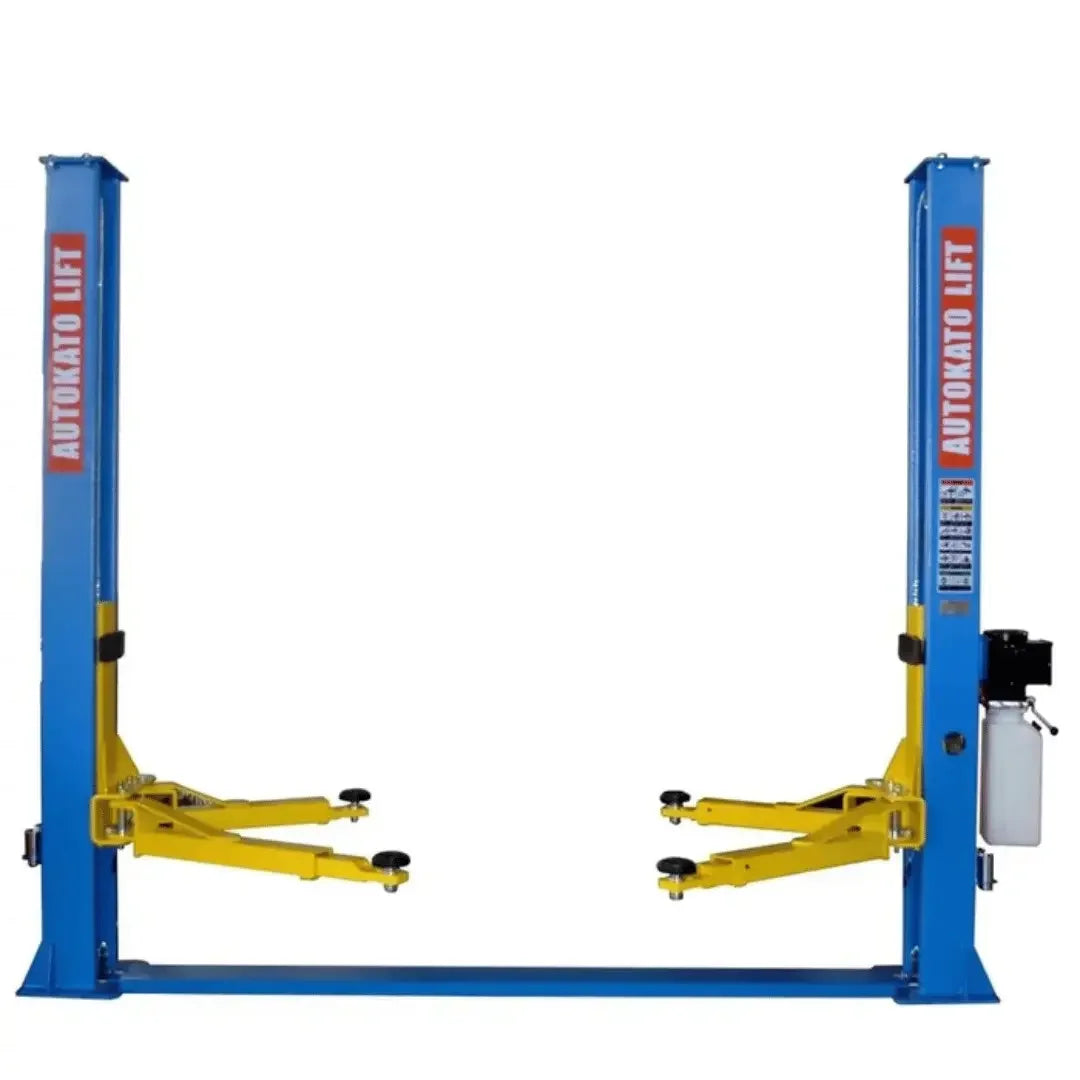

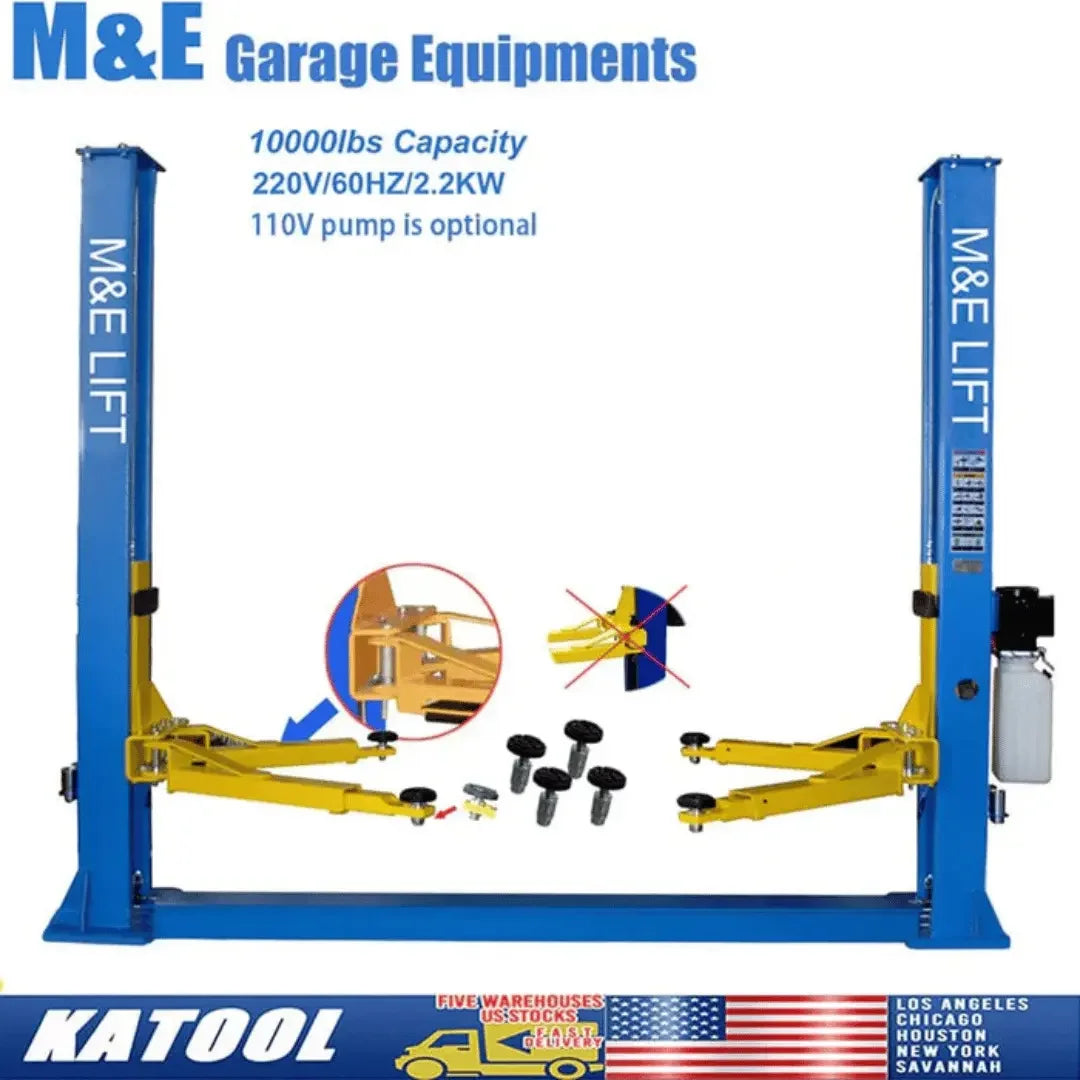

The KT-H105 is a base-plate two-post lift, meaning the hydraulic crossover runs along the floor inside a low steel plate between the columns rather than through a beam overhead. That's why it fits bays an overhead-beam lift can't: nothing caps the height of the vehicle you drive in, and nothing has to clear a garage-door track, sprinkler run, or low header. It's a 10,000 lbs symmetric lift running dual hydraulic chain-drive cylinders, with a manual safety release reachable from either column and a published overload test of 115% dynamic and 150% static loading.

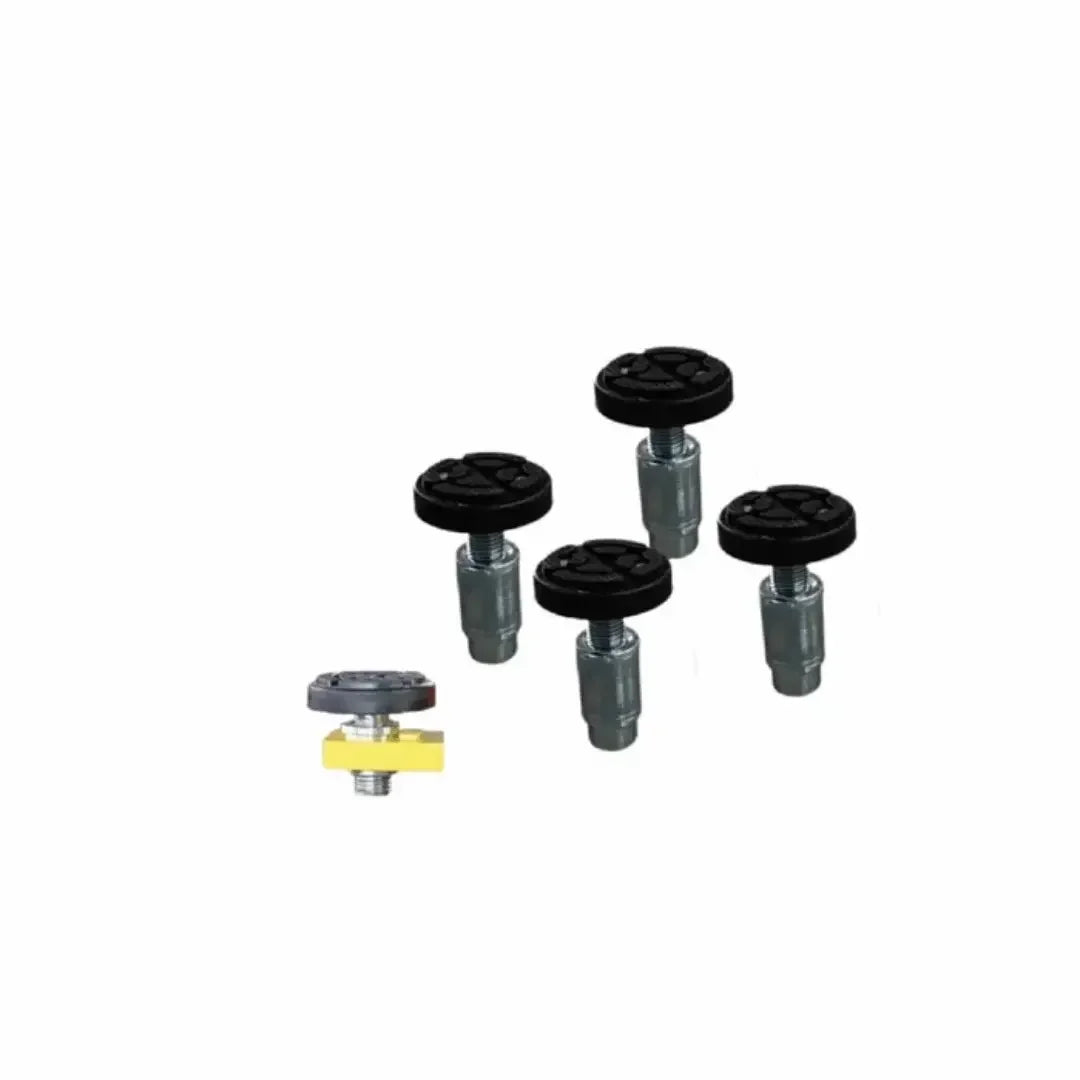

 10,000 LB Lifting Capacity 71" Max Rise Under Arms 220V Power Unit 115% Dynamic Load Rating Manufacturer Warranty Katool warranty document included, ask for current copy Freight to Lower 48 Live-quoted at checkout, typically 5-10 business days Real Support 866-774-7743 — Mon-Fri, 7 AM-4 PM MST Product Features 10,000 LB Lifting Capacity Symmetric two-post lift rated for full-size cars and light trucks. CE Approved & Certified Adopted 115% dynamic loading capacity and 150% static loading capacity tested. Manual Safety Release From Two Sides Locks release from either column, no walking around a raised vehicle to find one handle. Base Plate Design No overhead beam, so nothing caps the height of the vehicle you drive in. Dual Hydraulic Chain-Drive Cylinders Each column carries its own cylinder, keeping carriages tracking level together. Rubber Door-Opening Protection Columns carry rubber pads so a door swung open at height meets rubber, not steel. Screw-On Pads & Extension Adaptors Adaptor sets add 100mm of pad height for trucks and SUVs with high pinch welds. Top-Level Hydraulic System 220V/60HZ/1PH power unit driving the full lift system. Specifications General Model KT-H105 Lifting Capacity 10,000 lbs (4,500 kg) Overload Test Published 115% dynamic, 150% static Net / Shipping Weight 570 kg / 1,256 lbs Dimensions Overall Width 140.4" (3,565 mm) Overall Height 110.9" (2,818 mm) Inside the Columns 110.2" (2,800 mm) Outside the Columns 124.8" (3,170 mm) Drive-Through Clearance 98.4" (2,500 mm) Lift Range Max Lifting Height (Top of Pad) 70.8" (1,800 mm) Max Rise (Under Arms) 71" Minimum Pad Height 3.9" Arms & Pads Front Arm Reach 750-1,170 mm, two-stage Rear Arm Reach 900-1,480 mm, two-stage Pad Adaptors Supplied Screw-on, plus 100mm extensions Power & Installation Power Unit 220V / 60Hz / 1PH Motor 1 HP Optional Motor 110V, extra cost Concrete Required Min. 5.9", 3,000 PSI What's Included Columns Base-plate assembly, dual chain-drive cylinders Arms Symmetric arm set with screw-on pads Adaptors Extension support sets, +100mm pad height Protection Rubber door-opening protection pads Power & Hardware 220V power unit, installation hardware

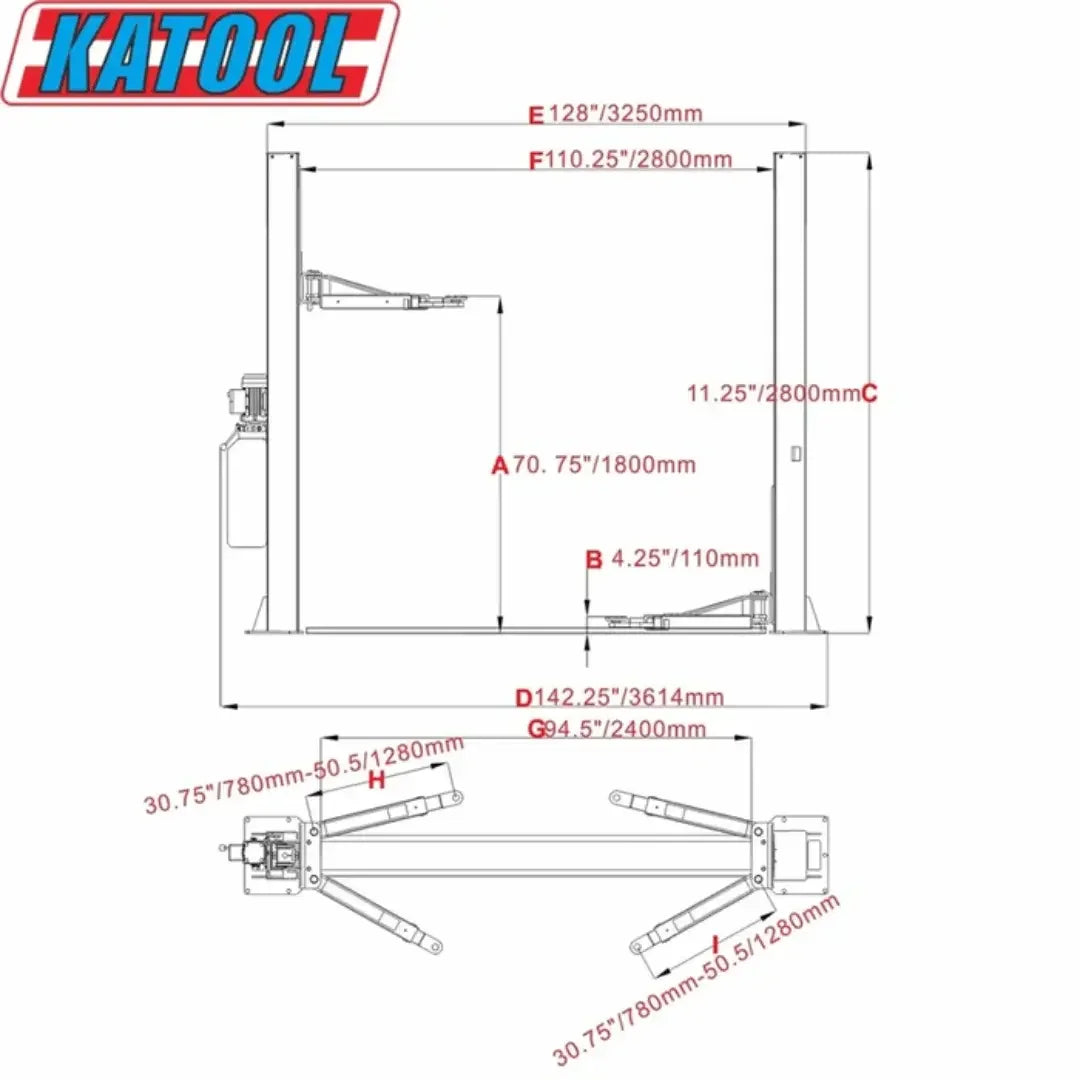

*The 110V motor is a paid substitution, not included. Anchors and slab work are not included. The manufacturer's quick-spec sheet lists 110.2" for drive-thru; the detailed spec copy on this page states 98.4" (2,500mm) drive-through clearance — both figures are shown above as published.

Full Standing Height, Nothing Overhead

Freight quoted live at checkout to the lower 48 states. Call, text, or chat for a quote: 866-774-7743.
