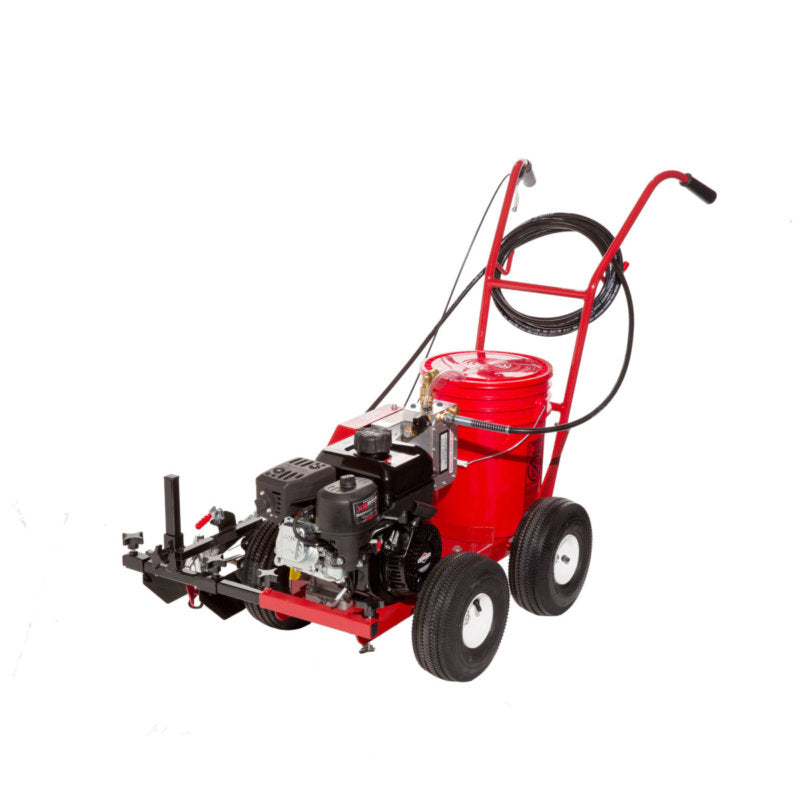

Newstripe 4400 Airless Striping Machine

CREATE STRAIGHT, PROFESSIONAL LINES FROM 2 TO 6 INCHES WIDE

The Newstripe 4400 Airless Striping Machine delivers precise line marking for athletic fields, parking lots and floors. Its four-wheel design and 10-inch pneumatic tires help maintain straight lines across varied surfaces, giving grounds crews and facility maintenance teams a reliable way to produce clean, professional markings.

ADJUSTABLE PRESSURE UP TO 3,000 PSI FOR BRIGHTER LINES

Control paint application with the adjustable high-pressure airless pump. Operating from 0 to 3,000 PSI at 0.44 GPM, the system accommodates thinned and non-thinned paints, helping you achieve crisp line edges while managing paint coverage.

LOAD PAINT DIRECTLY FROM A STANDARD 5-GALLON PAIL

Skip complicated paint transfers and load directly from a standard 5-gallon pail. The universal lid fits securely over the pail to help prevent spills and simplify setup, so you can get started on your striping job with less preparation.

WALK-BEHIND DESIGN WITH HANDLE-MOUNTED CONTROLS

Move around athletic fields, parking areas and facility floors without pushing an oversized machine. Handle-mounted controls keep operation convenient, while the compact walk-behind design makes the 4400 practical for routine line-marking tasks.

QUICK CLEANUP BETWEEN COLOURS AND JOBS

Changing paint colours or finishing a job is straightforward. Replace the paint pail with one containing water or the appropriate solvent for the paint being used, then flush the system. Using a suitable pump protector for storage helps prepare the machine for its next use.

REMOVE THE SPRAY GUN FOR STENCILS AND HARD-TO-REACH AREAS

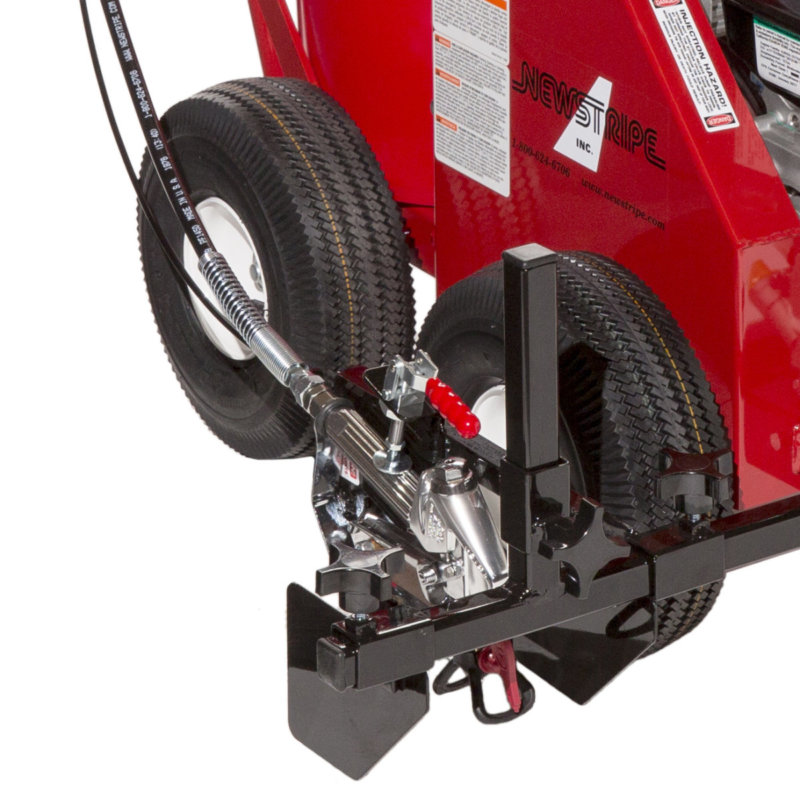

The quick-release spray-gun clamp lets you detach the gun for marking stencils, curbs and tight spaces. The included 25-foot hose extends your reach, while the optional rear flip-down swivel caster supports spraying arcs and circles.

CHOOSE THE ENGINE THAT SUITS YOUR WORK

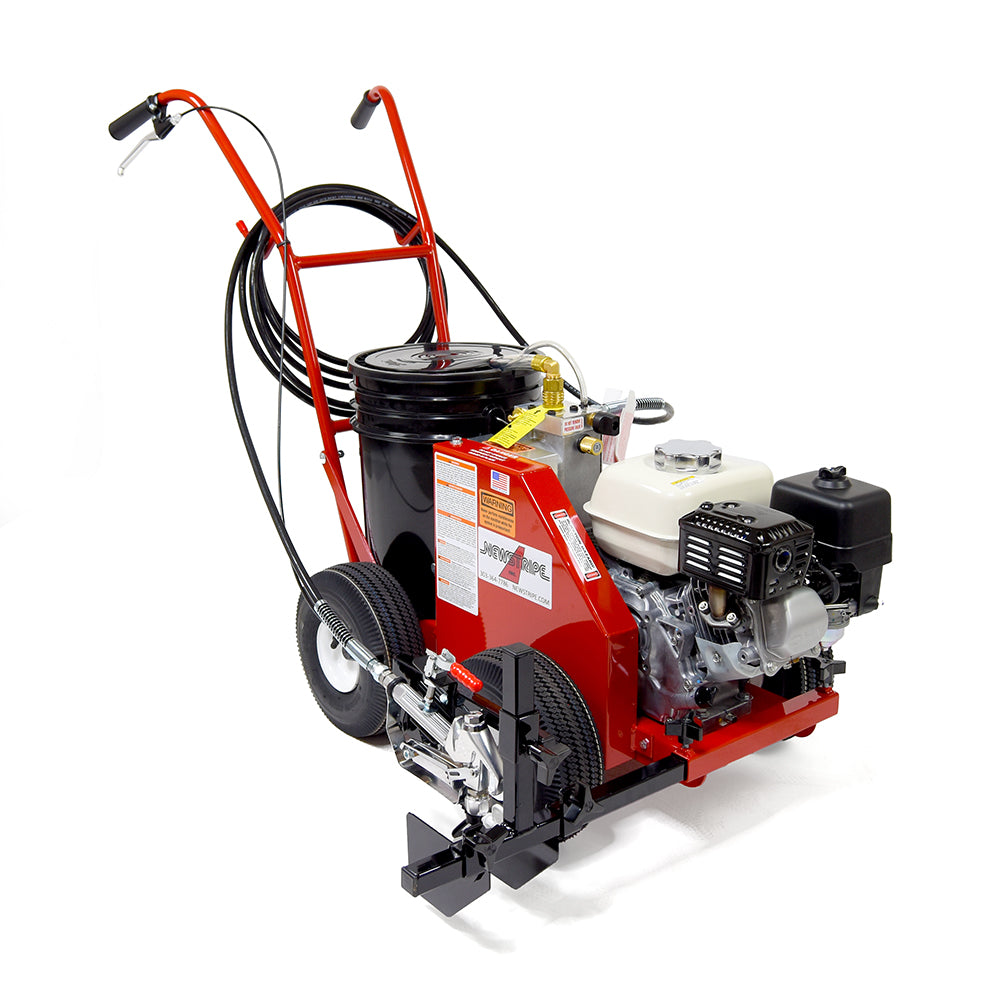

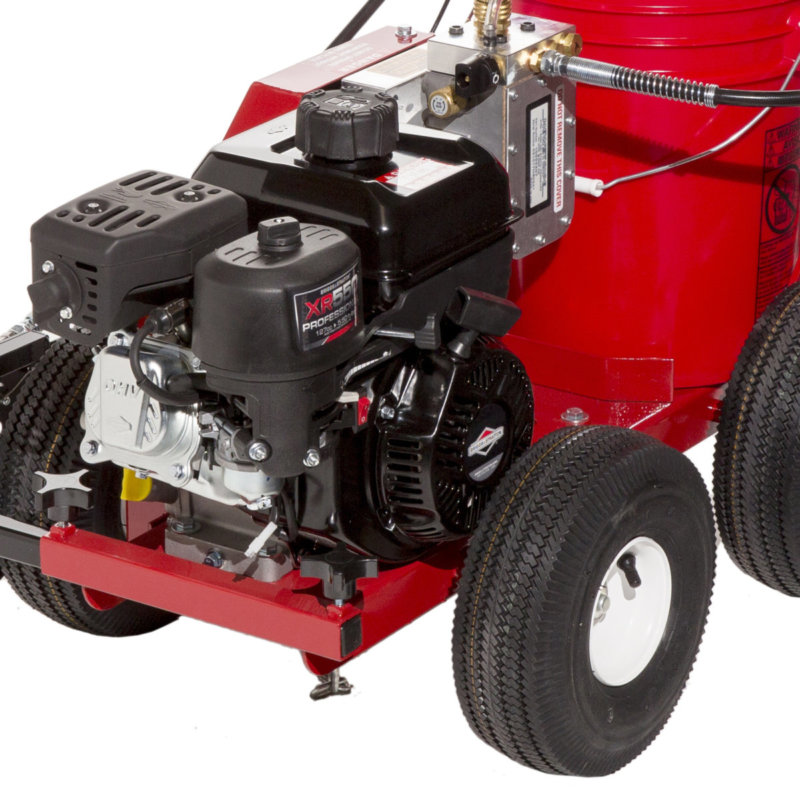

The Newstripe 4400 is available with a standard Briggs & Stratton XR 550 engine or an upgraded Honda GX 120 engine. Both configurations deliver the airless striping performance needed for regular field and pavement marking, with the engine choice allowing you to select the configuration that best suits your operation.

MADE IN THE USA WITH A 36-MONTH WARRANTY

Built in the United States, the Newstripe 4400 combines a compact four-wheel platform with a high-pressure airless pump for professional striping work. It comes with a 36-month manufacturer-listed warranty, subject to the applicable coverage terms.

FEATURES AND BENEFITS

• Versatile Line Width: Applies lines from 2 to 6 inches wide for field, pavement and floor marking.
• Adjustable Airless Pump: Offers 0–3,000 PSI pressure and 0.44 GPM output.
• Two Engine Options: Standard Briggs & Stratton XR 550 or upgraded Honda GX 120.
• Direct Paint Loading: Draws paint from a standard 5-gallon pail using the universal lid.
• Four-Wheel Design: Uses four 10-inch pneumatic tires to support stable movement and straight striping.
• Handle-Mounted Controls: Keeps operating controls conveniently positioned for walk-behind use.
• Quick-Release Spray Gun: Detaches for stencils, curbs and hard-to-reach marking areas.
• 25-Foot Extension Hose: Provides additional reach when the spray gun is detached.
• Optional Swivel Caster: Helps with spraying arcs and circles.
• Optional Cleaning Tank: A separately sold 1-gallon tank supports on-site cleaning of the spray gun and hoses.
• Made in the USA: Manufactured in the United States.
• 36-Month Warranty: Manufacturer-listed coverage subject to its terms and exclusions.

SPECIFICATIONS

Videos

 

Downloads

• 4400 Airless Manual (07/26)
• 4400 Airless with Honda Engine Manual (07/26)
• 4400 Airless Product Sheet (06/24)
• 4400 Airless Product Sheet Honda Engine (07/24)
• Paint-to-Striper Recommendations Flyer (11/25)
• Cleaning Guide for Airless Walk-Behind Stripers (04/26)
