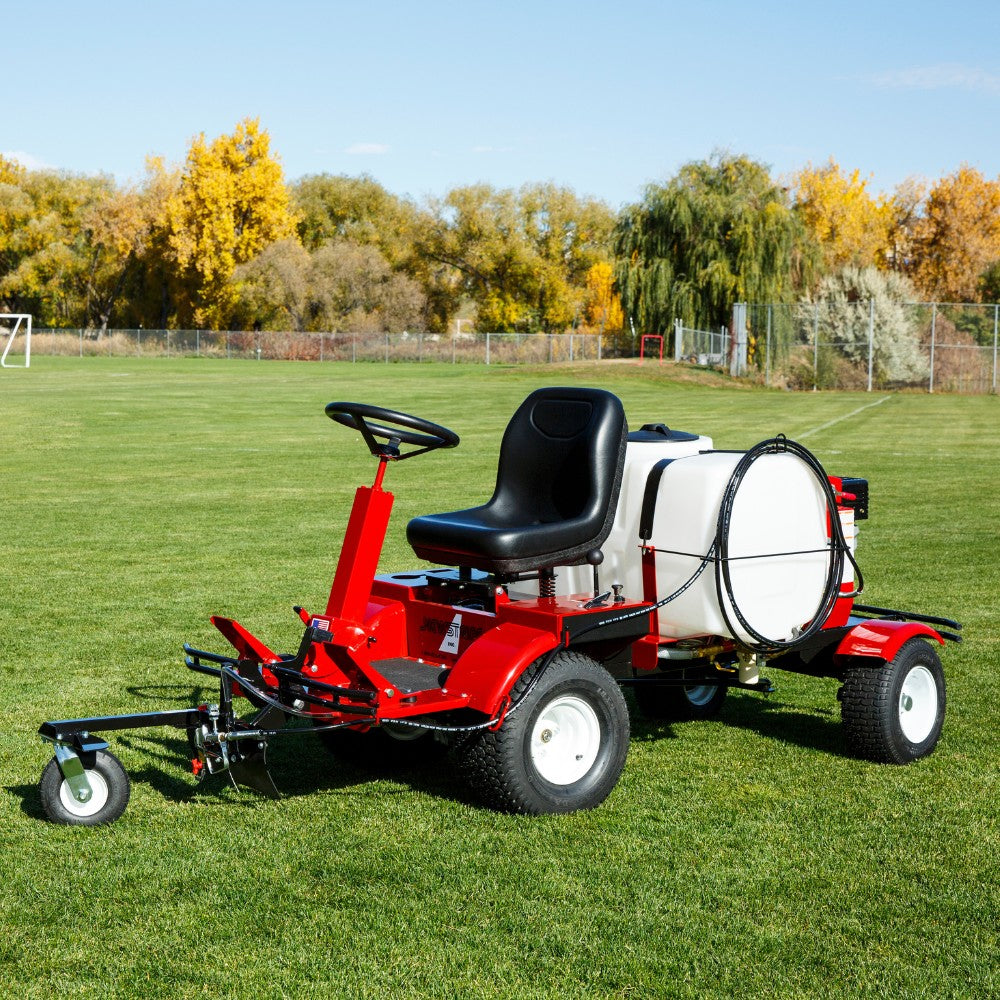

NewRider 5000 Airless Riding Field Line Striper

STRIPE LARGE ATHLETIC FIELDS WITH FEWER REFILLS

The Newstripe NewRider 5000 Airless Riding Field Line Striper is built for grounds crews managing large sports fields and athletic complexes. Its 50-gallon paint tank helps reduce refill stops, while the ride-on design lets operators cover extensive areas from the driver's seat.

ACHIEVE STRAIGHT, CONSISTENT LINES

Front-wheel drive and rear-wheel steering help keep the spray gun aligned as you steer, supporting accurate line placement. The low 30-inch seat height and centrally positioned spray head give operators a clear view of the marking path for greater control when striping athletic fields.

ADJUSTABLE AIRLESS PRESSURE UP TO 3,000 PSI

The high-pressure airless pump delivers adjustable pressure from 0 to 3,000 PSI at 0.44 GPM. Fine-tune the application to achieve bright, well-defined field markings while controlling paint coverage and helping prevent unnecessary paint from reaching the soil.

50-GALLON PAINT TANK FOR EXTENDED OPERATION

The large poly tank lets you stripe more field area between refills. Newstripe's product literature describes coverage of approximately three football fields or six soccer fields per filling, making this machine suitable for demanding field-maintenance schedules.

FOLLOW CHANGING TERRAIN FOR MORE UNIFORM LINES

The floating front swivel caster follows ground contours to help maintain consistent line width over uneven turf. This feature supports a more uniform finish when field surfaces vary across the marking route.

RIDE-ON CONTROLS DESIGNED FOR OPERATOR COMFORT

The adjustable tilt steering column makes entering and exiting the machine easier. Controls for ignition, throttle and parking brake are positioned near the operator, while foot pedals manage forward and reverse travel, speed, spray activation and spray-head movement.

CLEAN THE SPRAY SYSTEM ON THE FIELD

The integrated 2.5-gallon purge tank lets operators clean the spray gun and hose on-site, helping simplify maintenance between jobs or colour changes. An in-line filter helps reduce clogging and keep the spray system working reliably.

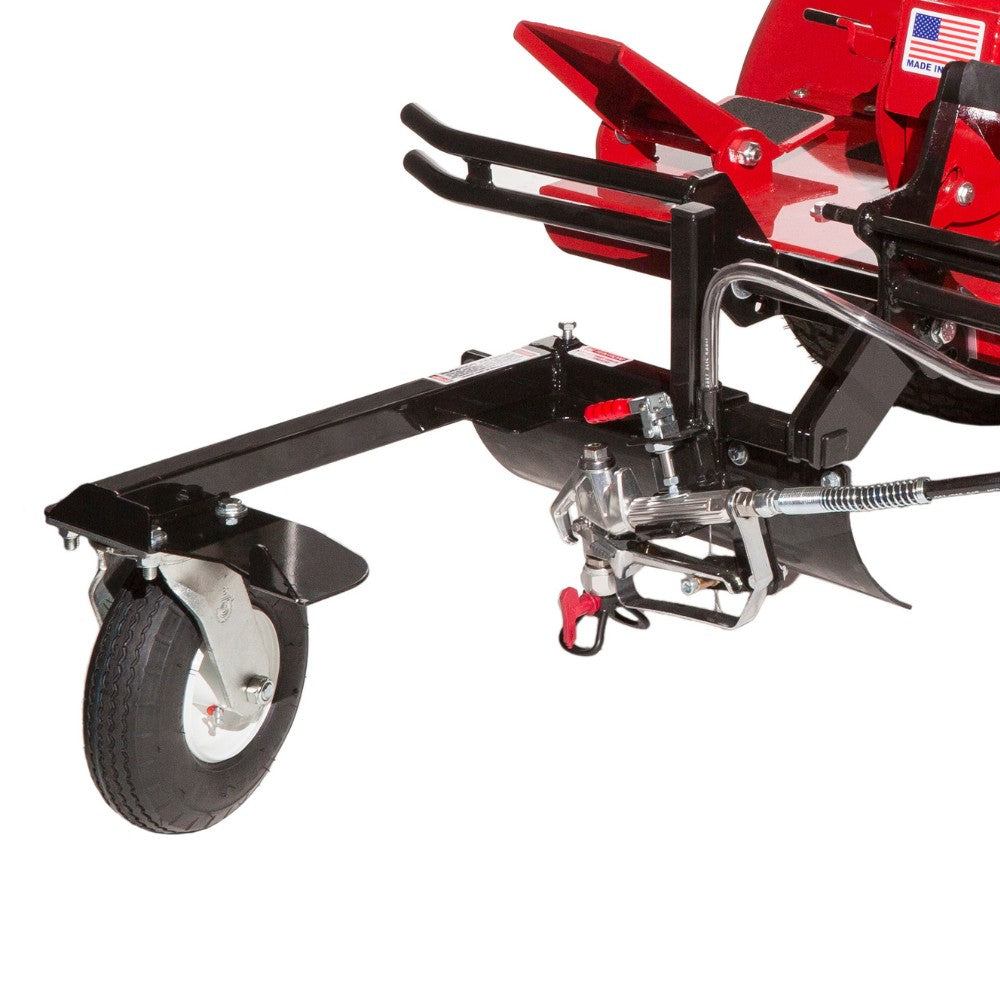

DETACHABLE SPRAY GUN FOR STENCILS AND CURVES

The quick-release spray-gun clamp and included 25-foot hose make it easier to mark stencils, small curves and hard-to-reach areas. You can detach the gun when detailed work calls for more flexibility than the mounted spray position provides.

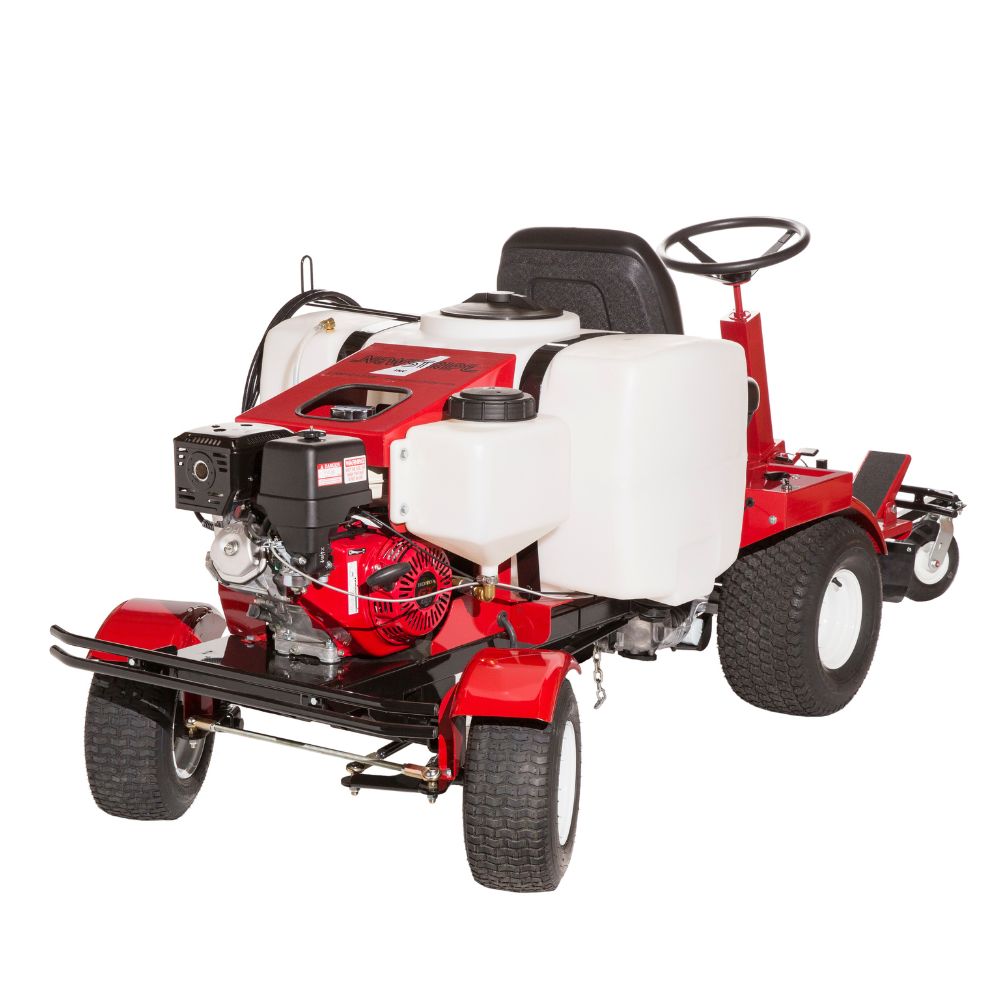

HONDA GX390 ENGINE WITH ELECTRIC START

Powered by a Honda GX390 engine, the NewRider 5000 combines engine-driven performance with a hydrostatic transaxle and airless spray system. It is made in the USA and backed by a 36-month limited manufacturer warranty, subject to its terms and exclusions.

FEATURES AND BENEFITS

• Ride-On Operation: Helps crews cover large athletic fields while working from the driver's seat.
• 50-Gallon Poly Paint Tank: Reduces the frequency of refills during extensive striping work.
• Adjustable Airless Pump: Provides 0–3,000 PSI pressure and 0.44 GPM output.
• Honda GX390 Engine: Engine power with electric start and backup recoil, as specified in the product literature.
• Front-Wheel Drive and Rear Steering: Supports manoeuvrability and accurate line placement.
• Floating Front Swivel Caster: Helps maintain line width across changing ground contours.
• Adjustable Tilt Steering Column: Makes entry, exit and operating-position adjustments easier.
• Foot-Pedal Controls: Manage forward and reverse movement, speed and spray-head functions.
• Integrated Purge Tank: Provides 2.5-gallon capacity for on-site cleaning of the spray gun and hose.
• Quick-Release Spray Gun: Allows detached spraying for stencils, curves and tight spaces.
• 25-Foot Spray Hose: Extends reach for detailed marking work.
• In-Line Filter: Helps reduce spray-system clogs.
• Pneumatic Wheels: 18-inch front wheels and 16-inch rear wheels.
• 36-Month Limited Warranty: Manufacturer coverage subject to stated conditions and component-specific exclusions.
• Made in the USA: Manufactured by Newstripe in the United States.

SPECIFICATIONS

Videos

Downloads

• NewRider 5000 Airless Manual (08/26)
• NewRider Transaxle Oil Filter Flyer (10/24)
• NewRider 5000 Product Sheet (07/26)
• Paint-to-Striper Recommendations Flyer (11/25)

Free shipping is available. A lead time of approximately 20 business days before shipment.

36 Month Manufacturer Warranty

A 30-days return and refund policy
