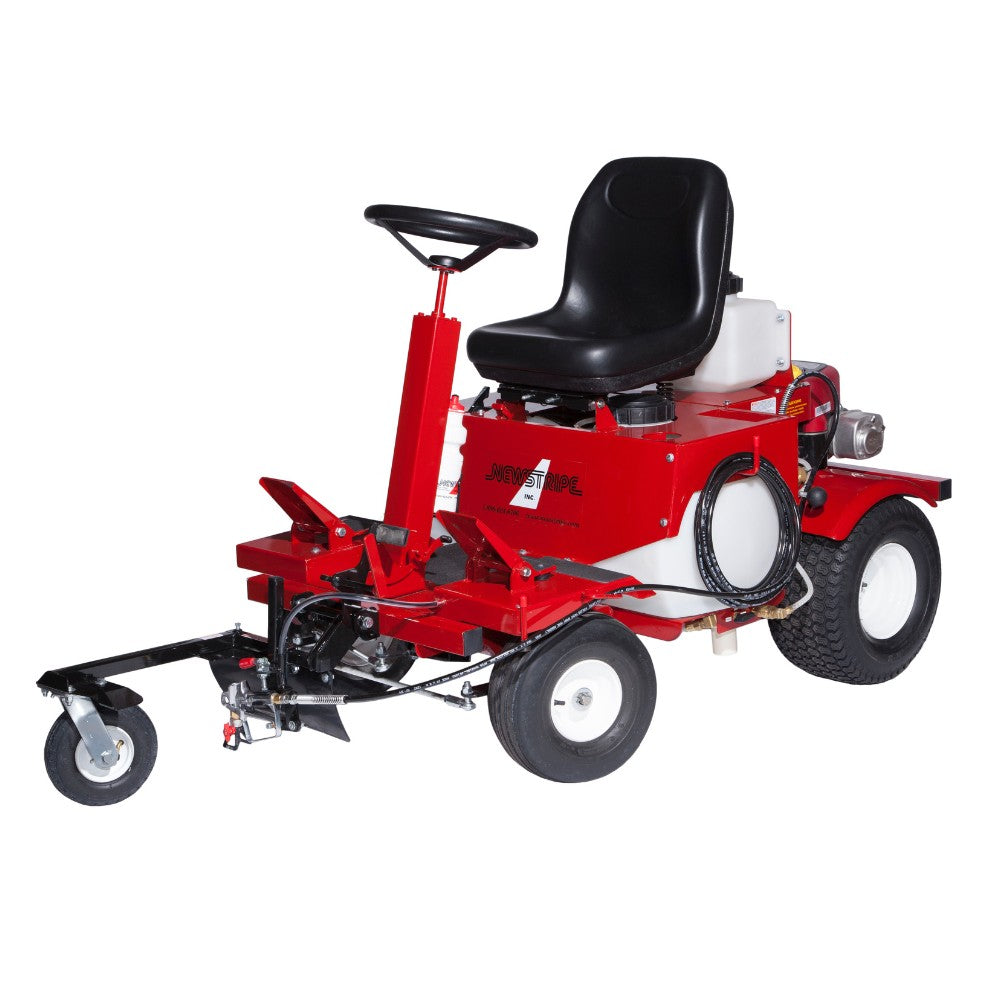

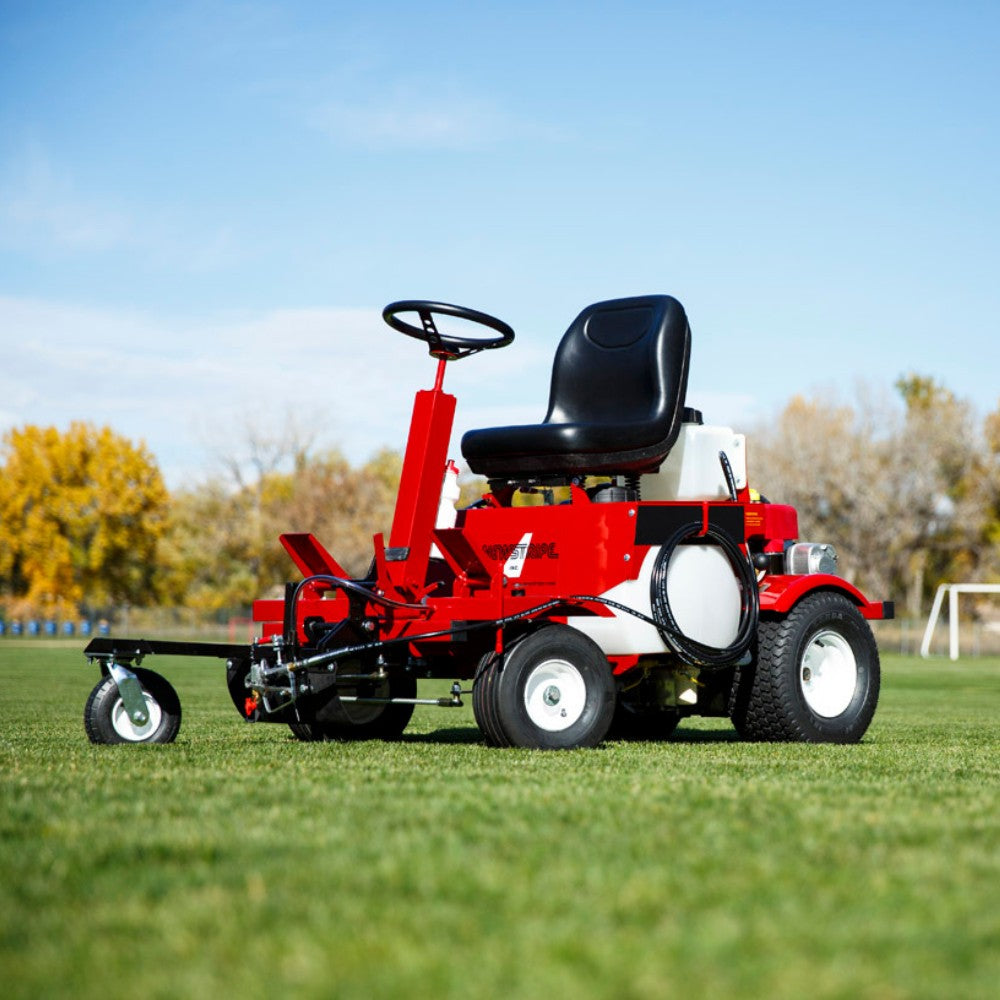

NewRider 1700 Airless Riding Field Line Striper

STRIPE ATHLETIC FIELDS WITH BRIGHTER, MORE CONSISTENT LINES

Create clean, professional-looking lines on natural or artificial turf with the Newstripe NewRider 1700. Its high-pressure airless spray system delivers adjustable paint application, helping you achieve clear markings while controlling paint use and reducing unnecessary impact on the playing surface.

ADJUSTABLE PRESSURE UP TO 3,000 PSI

Fine-tune the spray pressure to suit your field-marking requirements. The 0–3,000 PSI airless pump supports the application of thinned or non-thinned paints, giving you greater control over line quality and paint coverage.

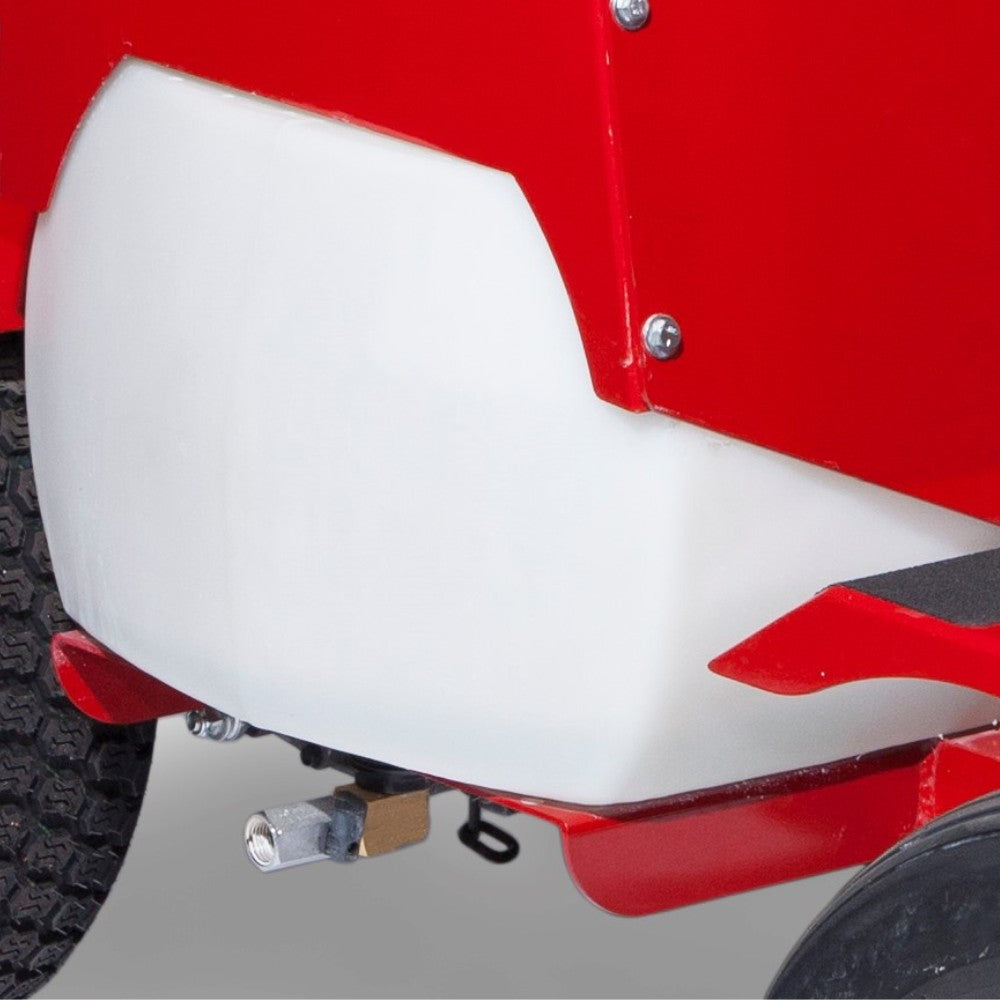

25-GALLON TANK FOR LONGER STRIPING RUNS

Spend more time marking fields and less time stopping to refill. The 25-gallon poly paint tank can stripe an entire football field or up to four full-size soccer fields on one filling, according to Newstripe.

MAINTAIN LINE WIDTH OVER UNEVEN TURF

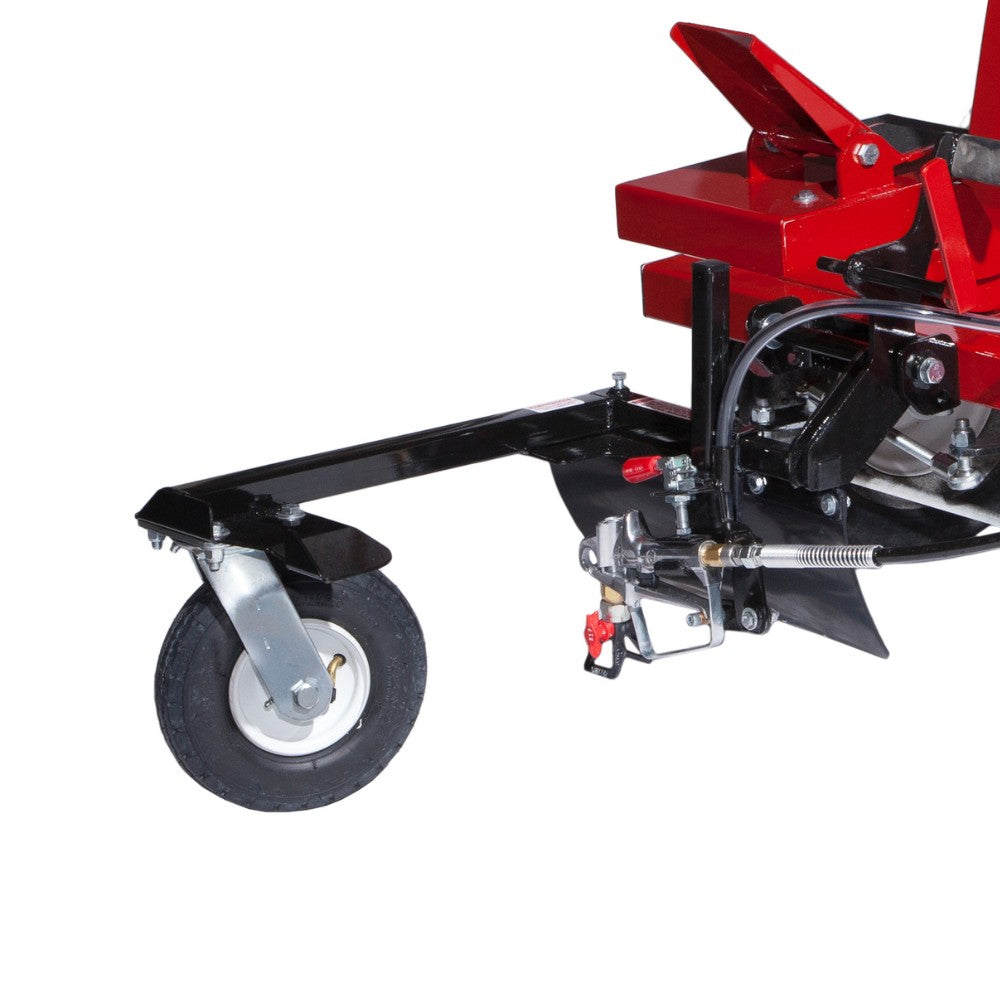

The floating front swivel caster follows ground contours to help maintain consistent line width across varied terrain. This makes it easier to produce uniform markings when field surfaces are not perfectly smooth.

RIDE-ON OPERATION WITH CONVENIENT CONTROLS

Cover large athletic fields from the operator's seat. Ignition, throttle and parking brake controls are within reach, while foot pedals manage forward and reverse movement and activate the spray gun.

ONBOARD CLEANING SYSTEM HELPS REDUCE DOWNTIME

The integrated 2.5-gallon purge tank lets you clean the spray gun and hose on-site. An in-line filter helps reduce clogging, making routine cleanup and maintenance more manageable between striping jobs.

REMOVE THE SPRAY GUN FOR STENCILS AND TIGHT SPACES

A quick-release clamp allows the spray gun to be detached for detailed marking. Use the included 25-foot hose to reach stencils, small curves and areas that are difficult to stripe with the gun mounted on the machine.

POWERFUL ENGINE AND 36-MONTH WARRANTY

Powered by a Briggs & Stratton Intek 11.5 HP engine, the NewRider 1700 combines a hydrostatic transaxle with an airless spray pump for riding field-striping work. It is proudly made in the USA and includes a 36-month manufacturer-listed warranty.

FEATURES AND BENEFITS

• High-Pressure Airless Pump: Adjustable 0–3,000 PSI pressure with a 0.44 GPM output.
• Large Paint Capacity: 25-gallon poly tank for extended field-marking runs.
• Onboard Purge Tank: 2.5-gallon tank for cleaning the spray gun and hose on-site.
• Floating Front Swivel Caster: Helps maintain consistent line width over changing ground contours.
• Seat-Based Operator Controls: Convenient access to ignition, throttle and parking brake.
• Foot-Pedal Operation: Controls forward and reverse movement and spray-gun activation.
• Quick-Release Spray Gun: Detaches for stencils, curves and hard-to-reach areas.
• 25-Foot Airless Hose: Extends reach when carrying out detailed marking tasks.
• In-Line Filter: Helps reduce clogging during operation.
• Pneumatic Wheels: 15-inch front wheels and 18-inch rear wheels.
• Manufacturer Warranty: 36-month warranty, subject to the manufacturer's terms.
• USA Manufacturing: Made in the United States.

SPECIFICATIONS

Videos

 

Downloads

• NewRider 1700 Airless Manual (06/26)
• NewRider Transaxle Oil Filter Flyer (10/24)
• NewRider 1700 Airless Product Sheet (08/26)
• Paint-to-Striper Recommendations Flyer (11/25)

Free shipping is available. A lead time of approximately 20 business days before shipment.

36 Month Manufacturer Warranty

A 30-days return and refund policy
