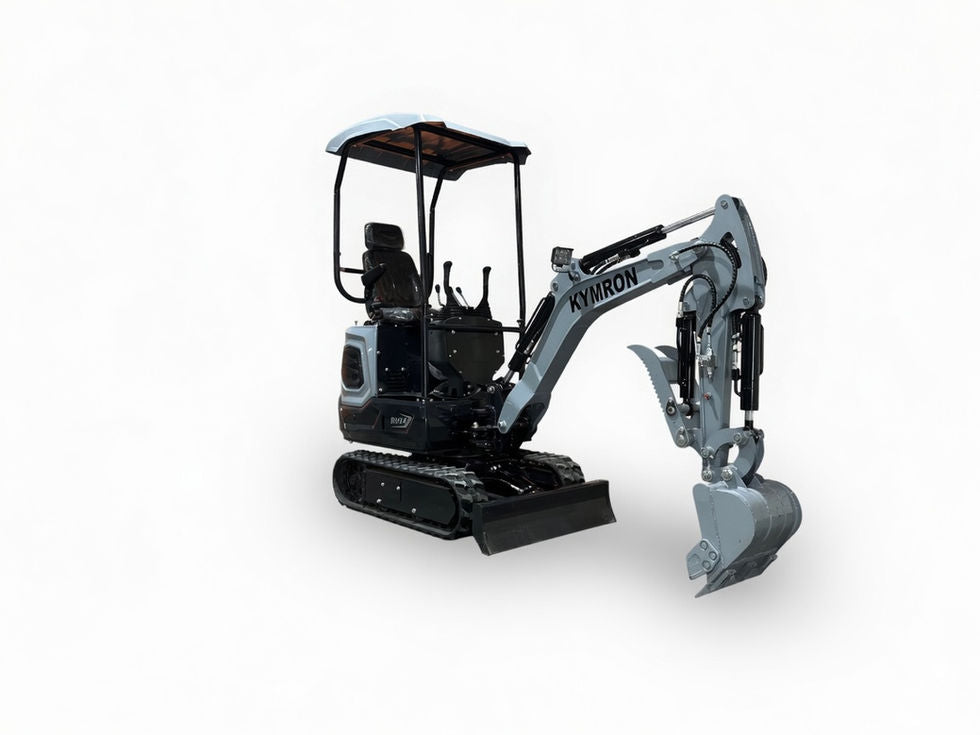

KYMRON RH14G Mini Excavator

2,200 LB MINI EXCAVATOR WITH 1,500 LB LIFT CAPACITY

The KYMRON RH14G Mini Track Excavator weighs 2,200 lbs and can lift upward of 1,500 lbs. Its compact tracked design gives you a practical machine for excavation and lifting work where a smaller excavator is needed.

14 HP BRIGGS & STRATTON GAS ENGINE

The RH14G is powered by a 14 HP Briggs & Stratton gas engine. This provides the power source for the excavator's digging, lifting and track drive functions.

UPGRADED HYDRAULIC PUMP WITH SMOOTH FLOW TECHNOLOGY

The RH14G features an upgraded HD hydraulic pump with smooth flow technology. KYMRON states that the pump is designed to provide reliable hydraulic performance and is interchangeable with leading name-brand hydraulic pumps such as Parker USA.

HD HYDRAULIC THUMB INCLUDED

The RH14G includes an HD hydraulic thumb as standard equipment. The thumb adds functionality for handling and positioning material during excavation work.

37-INCH COMPACT WIDTH FOR TIGHT WORK AREAS

With a total width of 37 inches, the RH14G has a compact footprint for work areas where access is limited. The machine has a 7-foot 2-inch total height, 48-inch track length and 54-inch track-to-blade dimension.

HIGH-PRECISION SPOOL VALVE FOR SMOOTH CONTROL

The upgraded high-precision spool valve is designed for smooth hydraulic control, allowing precise movement and responsive operation. This can help operators make controlled movements during digging and positioning work.

UPGRADED DRIVE MOTORS WITH SERVICEABLE DESIGN

The upgraded HD drive motors are designed for dependable power, torque and traction. KYMRON also states that the motors can be replaced with compatible U.S.-made hydraulic drive motors, including options from Eaton.

FEATURES AND BENEFITS

• 2,200 lb machine weight: Provides the listed operating weight for the compact RH14G excavator.
• Upward of 1,500 lb lift capacity: Provides substantial lifting capability for a machine in this size class.
• 14 HP Briggs & Stratton engine: Provides the gas-powered engine for digging and machine operation.
• HD hydraulic thumb: Included to provide additional material-handling functionality.
• Upgraded HD hydraulic pump: Provides the upgraded hydraulic system specified by KYMRON.
• Smooth flow technology: Designed to provide consistent hydraulic performance.
• Upgraded HD drive motors: Provide the specified drive system for traction and machine movement.
• Auxiliary hydraulics: Provides an additional hydraulic connection for compatible applications.
• High-precision spool valve: Designed for smooth, responsive hydraulic control.
• 37-inch total width: Provides a compact machine footprint for limited-access work areas.
• 5 ft 8 in maximum digging depth: Provides the listed maximum digging depth.
• 8 ft 7 in maximum digging height: Provides the listed maximum digging height.
• 9 ft 4 in maximum digging radius: Provides the listed working reach.
• 6 ft maximum dumping height: Provides the listed maximum dumping height.
• Ergonomic control console: Positions the controls for a more comfortable operator station.
• Optional side swing: Available as an option for additional boom positioning capability.
• Optional retractable tracks: Available for operators who require adjustable track width.
• Optional metal tracks: Available as an alternative track configuration.

SPECIFICATIONS

Please allow 10-15 days for delivery.

The manufacturer lists a 3-Year Powertrain Warranty. Warranty coverage is subject to the manufacturer's applicable terms and conditions.

No Returns
