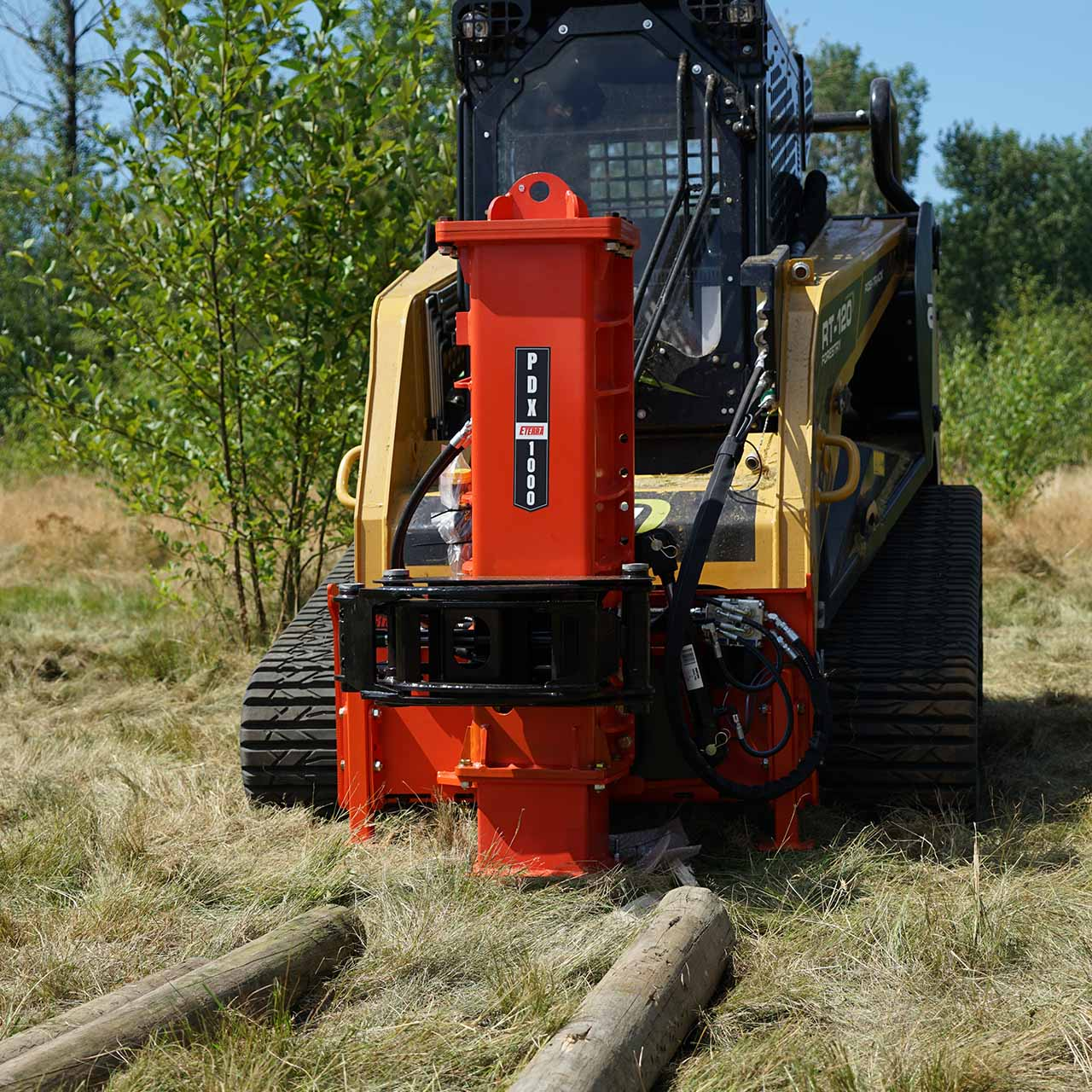

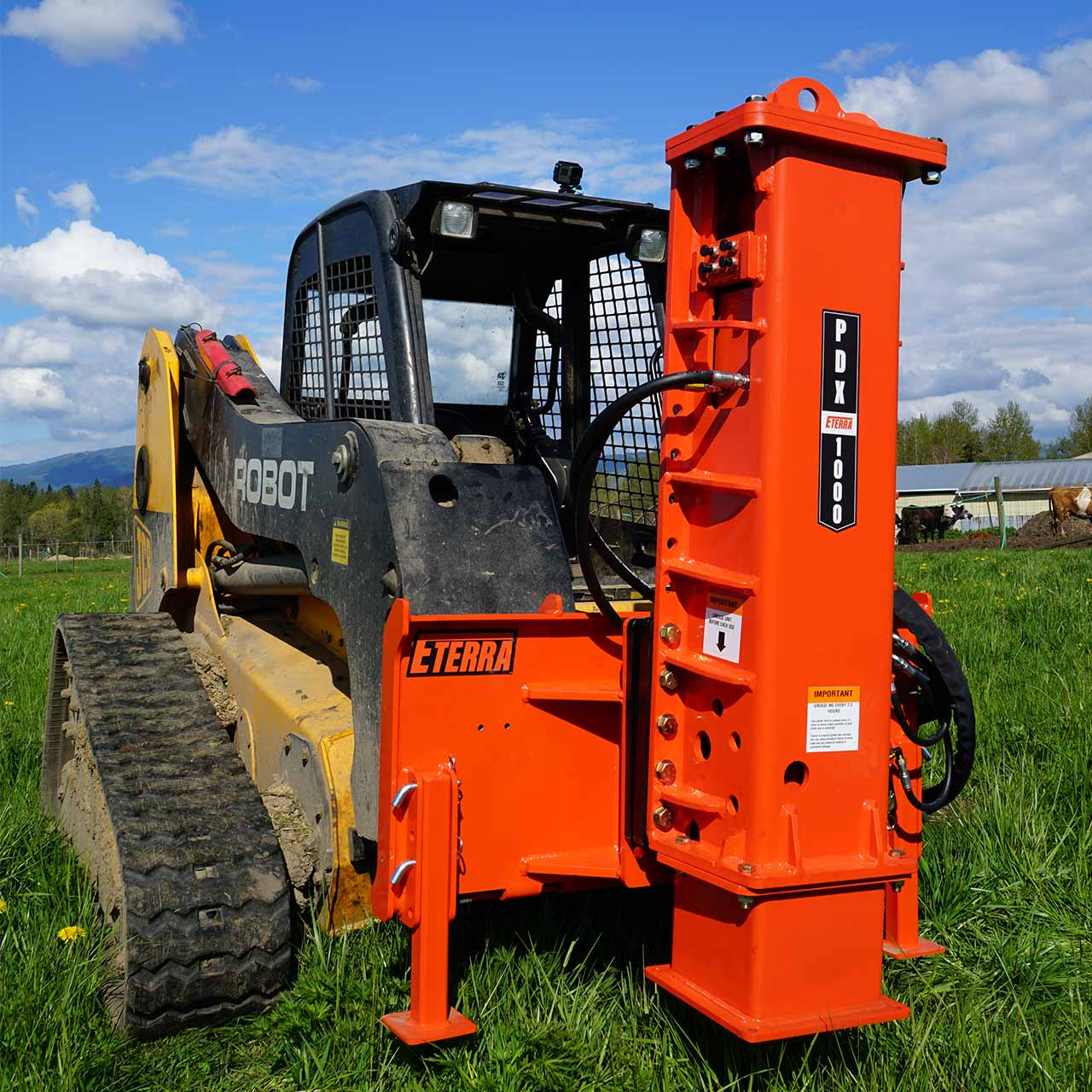

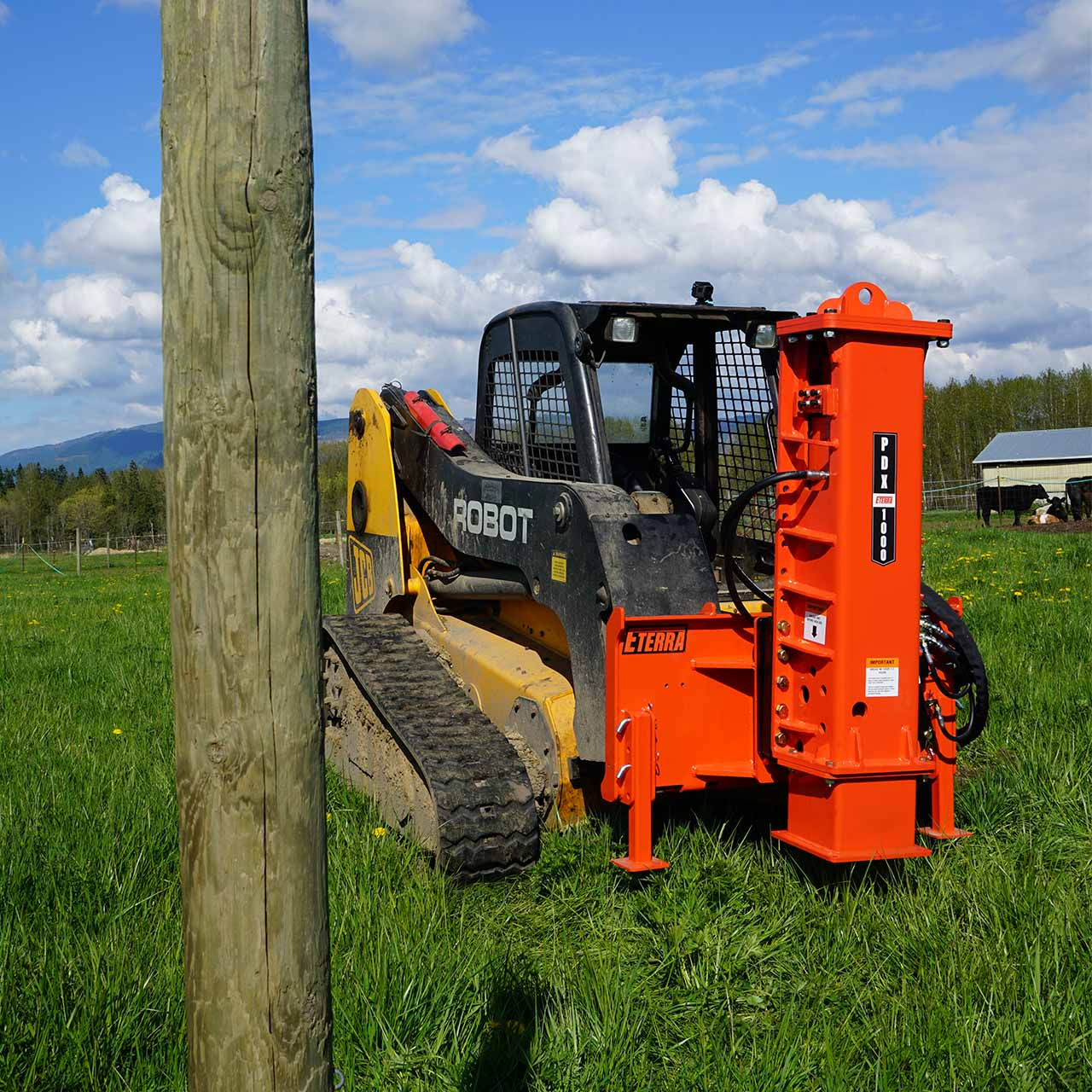

Eterra Skid Steer PDX-1000 Post Driver Attachment

DRIVE FENCE POSTS WITH 1,000 FT-LB OF IMPACT ENERGY

The Eterra PDX-1000 Skid Steer Post Driver Attachment is built for professional fence installation and demanding post-driving work. Its nitrogen-charged power cell delivers 1,000 ft-lb of energy per actuation, helping operators drive posts into a wide range of ground conditions with the hydraulic power of a compatible skid steer.

REDUCE VIBRATION WITH AN ENCLOSED POWER CELL

The heavy-duty power cell housing incorporates rubber isolators to help reduce vibration transmitted to the attachment and machine. This enclosed design supports smoother operation during repeated post-driving work, making it a practical choice for fencing contractors handling demanding installation projects.

POSITION POSTS ON UNEVEN TERRAIN

The integrated 15-degree tilt mechanism allows the driver to tilt left or right when equipped with the tilt configuration. Controlled by hydraulic valves, this feature helps operators position posts more accurately on slopes and uneven ground.

VERSATILE POST GUIDES AND DRIVER TOOLS

The standard post guide housing accommodates different post sizes through guide options for 2-inch, 4-inch, 6-inch, and 8-inch posts. The guide can be removed when driving posts larger than 9 inches. Domed and flat driver heads, along with a 5-foot breaker spike, provide additional options for different post-driving requirements.

IMPROVED VISIBILITY AND MACHINE CONTROL

The driver body is positioned two feet closer to the skid steer than competing models, according to Eterra. This layout is designed to improve visibility, manoeuvrability, and downforce while helping operators line up posts during fence installation.

FEATURES AND BENEFITS

• 1,000 FT-LB Energy Class: Delivers substantial impact energy for professional post-driving applications.
• Nitrogen-Charged Power Cell: Uses the skid steer's hydraulic power to actuate the driver.
• Vibration-Reducing Isolators: Rubber isolators help limit vibration transmitted through the attachment.
• 15-Degree Tilt Option: Supports post alignment on slopes and uneven terrain when the tilt configuration is fitted.
• Multiple Post Guide Sizes: Standard guide options accommodate 2-, 4-, 6-, and 8-inch posts.
• Removable Post Guide: Allows larger posts over 9 inches to be driven with the guide removed.
• Domed or Flat Driver Heads: Provides tooling options for different post types and applications.
• 5-Foot Breaker Spike: Offers a tool option for preparing difficult ground before driving posts.
• Heavy-Duty Construction: Designed for repeated use in professional fence installation.

SPECIFICATIONS

Download

Spec sheet
Manual
