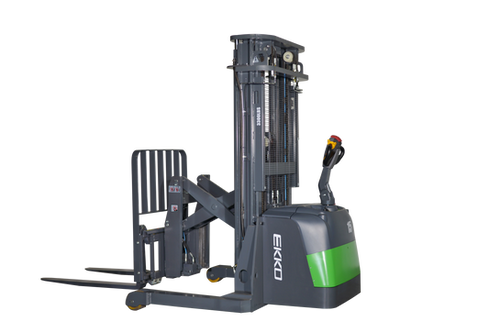

EKKO ER15 Lithium Walkie Reach Truck 3300 lb Cap.

ONE WALKIE REACH TRUCK FOR FORKLIFT, REACH AND STACKING APPLICATIONS

The EKKO ER15 Lithium Walkie Reach Truck combines the functions of a forklift, reach truck and walkie stacker in one electric machine. It gives operators a practical solution for loading and unloading trucks, working at loading docks, moving materials in stock rooms, manufacturing floors and warehouses.

FOUR LIFTING HEIGHT OPTIONS | CHOOSE THE CONFIGURATION THAT FITS YOUR OPERATION

The ER15 range is available in four configurations: ER15-138Li, ER15-177Li, ER15-189Li and ER15-216Li. Maximum raised heights range from 138 to 216 inches, giving you the flexibility to choose the vertical reach that matches your storage and stacking requirements.

3,300 LB LOAD CAPACITY | HANDLE HEAVY PALLET LOADS

All four ER15 configurations are rated for a 3,300 lb load capacity. This gives you consistent lifting capacity across the range while allowing you to select the mast height needed for your operation.

19.7 INCH REACH DISTANCE | POSITION LOADS DEEPER INTO STORAGE

The 19.7-inch reach distance gives the ER15 additional positioning capability when handling loads. Combined with powered lifting, the reach function provides more flexibility when placing and retrieving materials.

24V/200AH LITHIUM POWER | FULL ELECTRIC MATERIAL HANDLING

The ER15 uses a 24V/200Ah lithium battery with electric drive and lifting systems. A 24V/50A charger is included, and the battery is included with the machine for a complete electric power setup.

4.5 KW LIFTING MOTOR | POWERED HIGH-LIFT PERFORMANCE

The 4.5 kW lifting motor provides the power needed to raise loads through the available mast configurations. This supports the ER15's 138, 177, 189 and 216-inch lifting options.

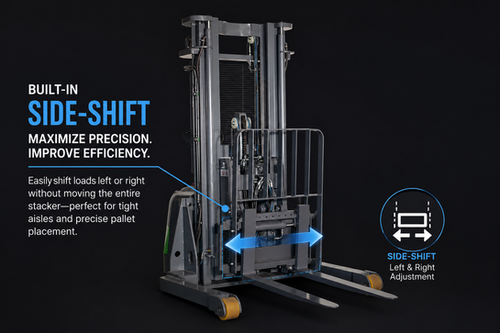

SIDE SHIFT AND TILT | MORE CONTROL WHEN POSITIONING LOADS

The ER15 includes both side shift and tilt functions. These features give operators additional flexibility when aligning, positioning and handling pallet loads.

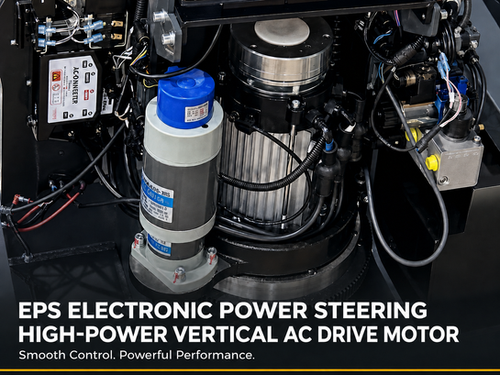

EPS ELECTRONIC POWER STEERING | CONTROLLED ELECTRIC STEERING

EPS electronic power steering provides powered steering control for the ER15. It works with the ergonomic handle and controls to support straightforward machine operation.

CURTIS INSTRUMENT CONTROLLER | INTEGRATED ELECTRIC CONTROL

The Curtis Instrument Controller manages the machine's electric system. It works with the AC drive system and electronic controls to provide controlled powered operation.

FEATURES AND BENEFITS

• 3,300 lb load capacity: Provides consistent lifting capacity across all four ER15 configurations.
• Four lifting-height options: Choose from 138, 177, 189 or 216 inches of maximum raised height.
• 19.7-inch reach distance: Provides additional reach when positioning loads.
• 24V/200Ah lithium battery: Provides electric power for daily material handling work.
• 4.5 kW lifting motor: Provides powered lifting performance across the available mast configurations.
• 1.5 kW AC drive motor: Provides powered electric travel.
• 24V/50A charger: Provides the charging equipment for the lithium battery.
• Side shift: Gives operators additional flexibility when positioning pallet loads.
• Tilt: Provides additional load-positioning control during material handling.
• EPS electronic power steering: Provides powered steering control.
• Curtis Instrument Controller: Provides integrated electronic control of the electric system.
• 45.3-inch forks: Provides consistent fork length across the ER15 configurations.
• 32.2-inch fork width: Provides a defined working width for pallet handling.
• Polyurethane wheels: Form part of the ER15 electric configuration.

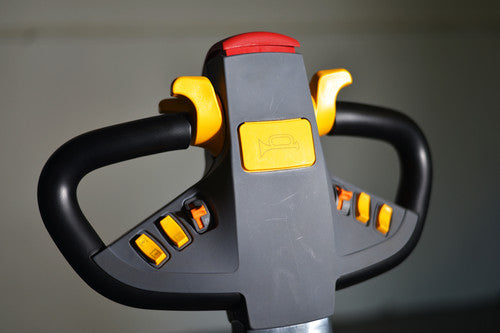

• Ergonomic handle and controls: Provides operator-focused control during material handling work.
• Lift control valve: Provides control within the lifting system.
• Steel construction: Provides a solid structure for regular warehouse and industrial use.
• Robotic welding: Supports consistent construction of the machine structure.

SPECIFICATIONS

CONFIGURATIONS AND LIFTING HEIGHTS

BUILT FOR WAREHOUSING AND MATERIAL HANDLING

The EKKO ER15 is designed for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehouse applications. Its combination of powered lifting, electric drive, 19.7-inch reach, side shift, tilt and four mast-height configurations provides a flexible solution for everyday material handling.
