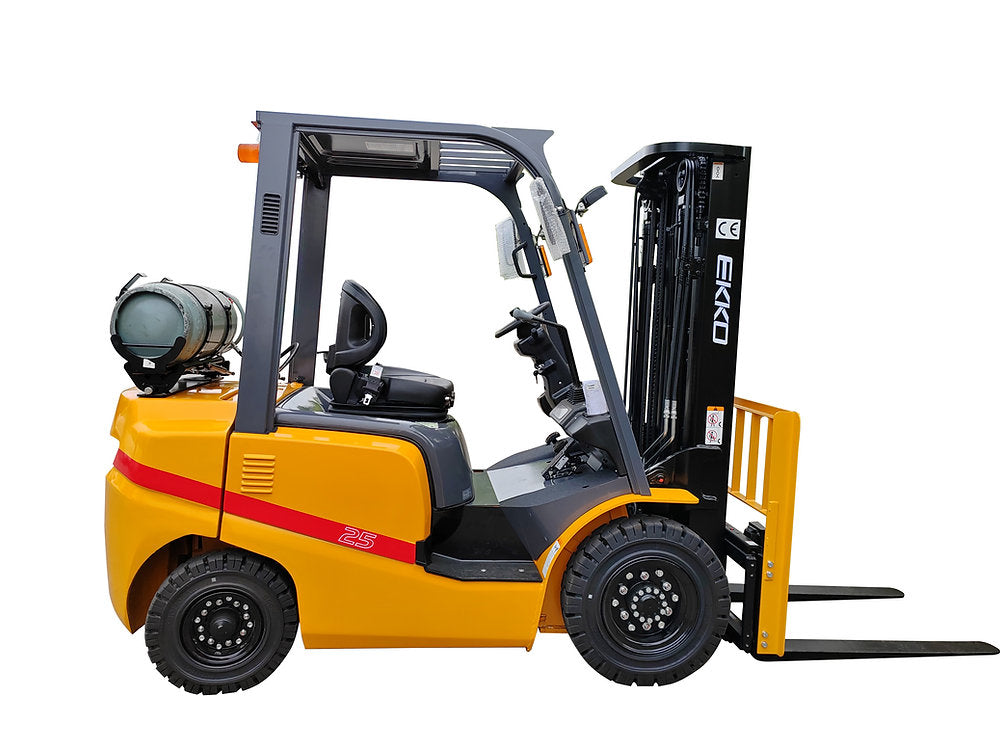

EKKO EK25TLP Forklift With Solid Pneumatic Tires 5000 lbs. Cap.

5,000 LB PROPANE POWER | BUILT FOR DEMANDING MATERIAL HANDLING

The EKKO EK25TLP provides a 5,000 lb load capacity for warehousing, distribution and material handling. Its four-wheel configuration, LPG power and solid pneumatic tires provide a practical setup for demanding commercial and industrial applications.

185 INCH LIFT HEIGHT | REACH HIGHER STORAGE LOCATIONS

The 185-inch lift height gives the EK25TLP substantial vertical reach for stacking and material handling. The 43.7-inch free lift height also provides useful fork movement before mast extension.

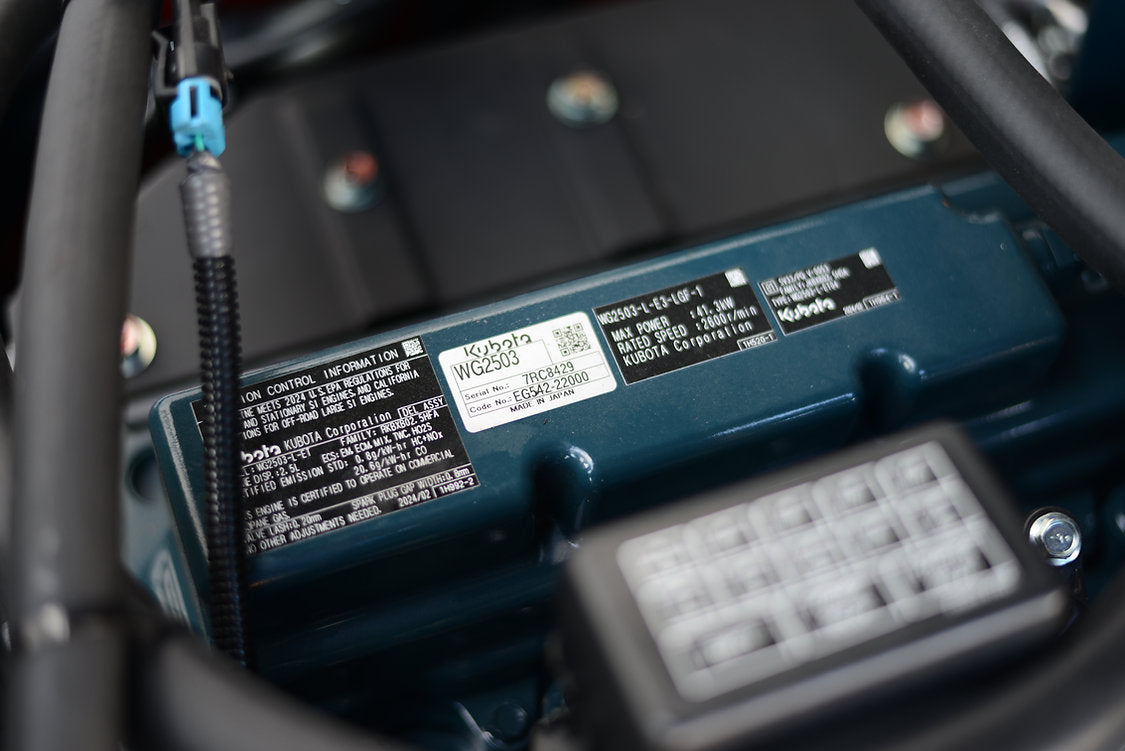

63 HP KUBOTA LPG ENGINE | POWER FOR DAILY MATERIAL HANDLING

The EK25TLP uses a Kubota LPG engine rated at 63 HP at 2,700 rpm. The engine satisfies CARB 4 regulations and provides the power required for regular lifting and travel applications.

OPTIMIZED HYDRAULIC SYSTEM | DESIGNED FOR EFFICIENT OPERATION

The hydraulic system is designed to improve energy efficiency and reduce fuel consumption. It supports the forklift's lifting and material-handling functions while working with the pre-plumbed Shimadzu 4-Way Valve.

CASCADE SIDE SHIFT | POSITION LOADS WITH MORE CONTROL

The Cascade side shift provides additional flexibility when positioning loads. It allows operators to adjust the load position without moving the entire forklift.

FOUR-WHEEL CONFIGURATION | STABLE MATERIAL HANDLING PLATFORM

The EK25TLP uses a four-wheel configuration with solid pneumatic tires. This setup provides a durable foundation for regular material handling across commercial, warehouse and distribution environments.

COMFORT-FOCUSED OPERATOR SPACE | DESIGNED FOR DAILY USE

The enlarged operator space, semi-suspension seat and small steering wheel are designed to provide a more comfortable working environment. The suspension cab and cushion connection help absorb truck vibration during operation.

LOWERING DAMPING DEVICE | REDUCE MAST SHOCK AND VIBRATION

The lowering damping device in the lifting system helps reduce mast shock and vibration during lowering. This supports smoother load handling and more controlled mast movement.

FEATURES AND BENEFITS

• 5,000 lb load capacity: Handles loads up to the listed rated capacity for demanding material handling.
• 185-inch lift height: Provides substantial vertical reach for stacking and storage applications.
• 43.7-inch free lift: Provides useful fork movement before mast extension.
• 63 HP Kubota LPG engine: Provides the engine power required for daily lifting and travel.
• LPG operation: Uses liquid propane as the forklift's fuel source.
• 24-inch load centre: Provides the specified load-centre distance for the rated capacity.
• Solid pneumatic tires: Provide the specified tire setup for the four-wheel forklift.
• Cascade side shift: Provides additional flexibility when positioning loads.
• Shimadzu 4-Way Valve: Provides a pre-plumbed hydraulic valve system for material-handling functions.
• Optimized hydraulic system: Is designed for improved energy efficiency and lower fuel consumption.
• 10.6 mph loaded travel speed: Provides powered movement with a loaded truck.
• 11.8 mph unloaded travel speed: Provides faster travel when the forklift is unloaded.
• Hydraulic floor-pedal service brake: Provides hydraulic braking control.
• Semi-suspension seat: Adds operator-focused comfort during forklift operation.
• Suspension cab: Helps absorb vibration during operation.
• Lowering damping device: Helps reduce mast shock and vibration when lowering loads.
• CARB 4 engine: The engine satisfies CARB 4 regulations.

SPECIFICATIONS
