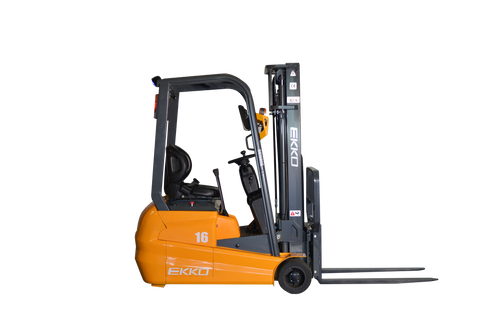

EKKO EK16A 3-Wheel Forklift 3500lbs.

3,500 LB CAPACITY IN A COMPACT 3-WHEEL DESIGN

The EKKO EK16A 3-Wheel Electric Forklift combines a 3,500 lb load capacity with a compact 42.1-inch overall width and 58.9-inch turning radius. This design is suited to small aisles and limited spaces where maneuverability is important.

FOUR LIFTING HEIGHTS FROM 138 TO 216 INCHES

The EK16A range gives you four lifting-height configurations: EK16A-138, EK16A-177, EK16A-189Li and EK16A-216Li. Maximum lift heights range from 138 to 216 inches, allowing you to select the configuration that matches your stacking requirements.

3-WHEEL MANEUVERABILITY FOR TIGHT WORK AREAS

The three-wheel configuration is designed for small aisles and limited spaces. Hydraulic power steering, cushion tires and a 58.9-inch turning radius provide a compact setup for indoor material handling on flat surfaces.

ELECTRIC DRIVE WITH MULTIPLE BATTERY OPTIONS

The EK16A uses an electric drive system and 3.3 kW lift motor. The EK16A-138 and EK16A-177 use 24V/320Ah batteries, while the EK16A-189Li and EK16A-216Li use 24V/200Ah lithium batteries.

ADJUSTABLE FORKS WITH SIDE SHIFT AND TILT

The forks adjust from 7.9 to 26 inches, giving operators flexibility when handling different load widths. Side-shifting forks and tilt functionality provide additional control when positioning loads.

BUILT FOR INDOOR WAREHOUSE MATERIAL HANDLING

The EK16A is recommended for indoor use on flat surfaces and is suited to loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehouses. Steel construction and robotic welding provide the specified construction system for the range.

FEATURES AND BENEFITS

• 3,500 lb load capacity: Provides the rated lifting capacity across all four EK16A configurations.
• Four lifting-height options: Choose from 138, 177, 189 or 216 inches of maximum lift height.
• 3-wheel configuration: Provides a compact setup for small aisles and limited spaces.
• 42.1-inch overall width: Helps keep the forklift compact in indoor working areas.
• 58.9-inch turning radius: Provides the specified turning dimension for maneuvering.
• Electric operation: Provides powered drive and lifting for material handling.
• 3.3 kW lift motor: Provides powered lifting for the forklift.
• Adjustable forks: Fork adjustment ranges from 7.9 to 26 inches for different load widths.
• 42.1-inch fork length: Provides the specified fork length across the range.
• Side-shifting forks: Provides additional flexibility when positioning loads.
• Hydraulic power steering: Provides hydraulic steering control.
• Zapi controller: Provides the specified controller system for the EK16A range.
• Cushion tires: Provide the specified tire configuration for indoor operation.
• Steel construction: Provides the specified steel build.
• Robotic welding: Used in the forklift's construction.
• 24V/50A charger: Provides the specified charging system.
• Multiple battery configurations: The 138 and 177 models use 24V/320Ah batteries, while the 189Li and 216Li use 24V/200Ah lithium batteries.
• Indoor use: Recommended for indoor operation on flat surfaces.

SPECIFICATIONS

CONFIGURATIONS AND LIFTING HEIGHTS
