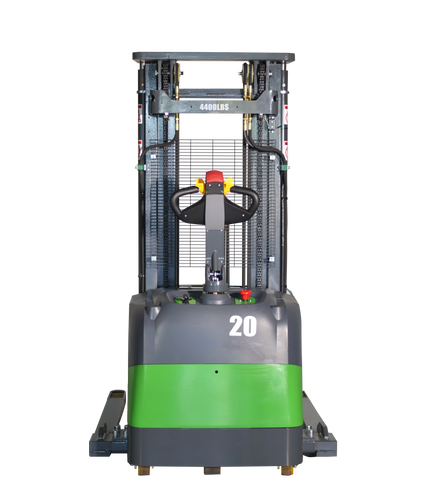

EKKO EB20CS-LI Full Powered Straddle Stacker 4400 lb Cap.

FULL-POWERED STRADDLE STACKING | HANDLE HEAVIER LOADS WITH CONFIDENCE

The EKKO EB20CS Full Powered Straddle Stacker combines the versatility of a forklift, reach truck and walkie stacker in one electric machine. With a 4,400 lb load capacity, it is built for loading and unloading trucks, working at loading docks, stock rooms, manufacturing floors and warehouses.

THREE HIGH-LIFT CONFIGURATIONS | CHOOSE THE HEIGHT THAT FITS YOUR OPERATION

The EB20CS range is available as the EB20CS-177Li, EB20CS-189Li and EB20CS-216Li. Maximum raised heights are 177, 189 and 216 inches, giving you three options for different storage and stacking requirements.

4,400 LB LOAD CAPACITY | BUILT FOR HEAVIER MATERIAL HANDLING

Every EB20CS configuration is rated for a 4,400 lb load capacity. The consistent capacity across all three models lets you choose your required lifting height without changing the core load rating.

24V/150AH LITHIUM POWER | FULL ELECTRIC OPERATION

The EB20CS uses a 24V/150Ah lithium battery with a 24V AC drive motor and 3,000W lifting motor. The battery is included, along with a 24V/50A charger, giving the machine a complete electric power system.

ADJUSTABLE STRADDLE LEGS AND FORKS | FLEXIBLE LOAD HANDLING

The forks adjust from 8.7 to 32.1 inches, while the straddle legs adjust from 39.8 to 55.5 inches. This gives the EB20CS flexibility when handling different pallet and load configurations.

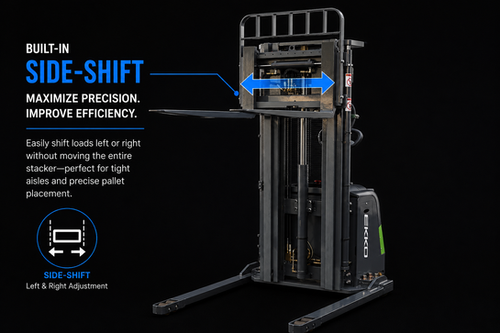

SIDE SHIFT | POSITION LOADS WITH GREATER FLEXIBILITY

Side shift is included on the EB20CS. It gives operators additional control when positioning loads, helping align pallets without moving the entire machine.

3,000W LIFTING MOTOR | POWER FOR HIGH-LIFT APPLICATIONS

The 3,000W lifting motor provides the power required to raise loads through the EB20CS high-lift configurations. It supports the 177, 189 and 216-inch maximum raised heights.

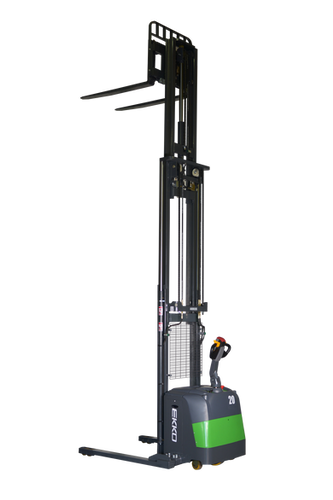

TRIPLE MAST | REACH UP TO 216 INCHES

The triple mast provides the vertical lifting structure used across the EB20CS range. Choose the 177, 189 or 216-inch configuration based on the storage height your operation requires.

CURTIS CONTROLLER AND AC DRIVE | CONTROLLED ELECTRIC OPERATION

The Curtis controller works with the 24V AC drive system to control powered travel. Combined with the 1500W driving motor, the system provides powered movement for daily material handling work.

FEATURES AND BENEFITS

• 4,400 lb load capacity: Provides the lifting capacity needed for heavier pallet and material handling applications.
• Three lifting-height options: Choose from 177, 189 or 216 inches of maximum raised height.
• Full-powered operation: Provides powered travel and lifting for regular material handling work.
• 24V/150Ah lithium battery: Provides electric power and is included with the machine.
• 3,000W lifting motor: Provides dedicated power for lifting loads through the available mast heights.
• 1500W driving motor: Provides powered travel for moving loads around the work area.
• 24V AC drive motor: Provides electric drive power for the stacker.
• Side shift: Provides additional flexibility when positioning pallets and loads.
• Adjustable forks: Adjust from 8.7 to 32.1 inches to suit different load configurations.
• Adjustable straddle legs: Adjust from 39.8 to 55.5 inches for flexible pallet handling.
• 45.3-inch fork length: Provides consistent fork reach across all three configurations.
• Triple mast: Provides the lifting structure for the 177, 189 and 216-inch configurations.
• Curtis controller: Controls the electric drive system.
• Polyurethane wheels: Form part of the electric straddle stacker configuration.

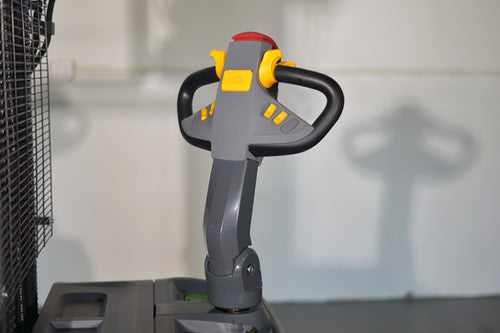

• Ergonomic handle and controls: Provides operator-focused control during material handling work.
• Steel construction: Provides a solid structure for regular warehouse and industrial use.
• Robotic welding: Supports consistent construction of the steel machine structure.
• 24V/50A charger: Provides the charging equipment for the lithium battery.

SPECIFICATIONS

CONFIGURATIONS AND LIFTING HEIGHTS

BUILT FOR WAREHOUSING AND MATERIAL HANDLING

The EKKO EB20CS is designed for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehouse applications. Its 4,400 lb capacity, adjustable straddle legs, adjustable forks, side shift and three high-lift configurations provide a flexible solution for heavier loads and greater storage heights.

Please allow 10-15 days for delivery.

Warranty coverage is subject to the manufacturer's applicable terms and conditions.

30-Day Easy Returns. Please contact Sullivan Equipment Co. for return eligibility and instructions.
