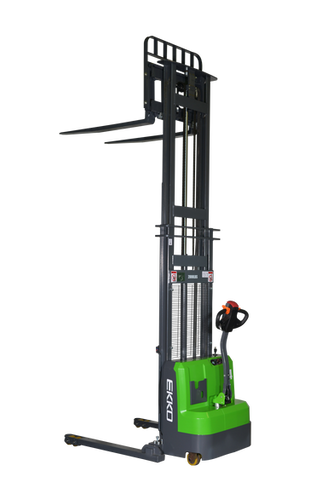

EKKO EB14C-LI Lithium Straddle Stacker 3000 lb. Cap.

ONE MACHINE FOR FORKLIFT, REACH TRUCK AND WALKIE STACKER APPLICATIONS

The EKKO EB14C Lithium Straddle Stacker combines the functions of a forklift, reach truck and walkie stacker in one electric machine. It gives operators a practical solution for loading and unloading trucks, working at loading docks, moving materials in stock rooms and handling everyday warehouse tasks.

FOUR LIFTING HEIGHT OPTIONS | CHOOSE THE HEIGHT THAT FITS YOUR OPERATION

The EB14C range is available in four configurations: EB14C-98Li, EB14C-118Li, EB14C-138Li and EB14C-145Li. Each model provides a 3,000 lb load capacity, with maximum raised heights from 98 to 145 inches.

3,000 LB LOAD CAPACITY | HANDLE HEAVY PALLET LOADS

Every EB14C configuration is rated for a 3,000 lb load capacity. This gives you consistent lifting capacity across the range while letting you select the mast height that matches your storage and material handling needs.

ADJUSTABLE STRADDLE LEGS AND FORKS | CONFIGURE THE MACHINE FOR YOUR LOADS

The adjustable forks can be set from 8.7 to 32.1 inches, while the straddle legs adjust from 35.4 to 51.2 inches. This gives the EB14C flexibility for different material-handling requirements while maintaining its 3,000 lb rated capacity.

24V/50AH LITHIUM POWER | ELECTRIC OPERATION FOR WAREHOUSE WORK

The EB14C uses a 24V/50Ah lithium battery and DC drive motor. The electric power system is paired with an internal 24V/20A charger, giving operators an integrated charging solution for daily material handling work.

2.2 KW LIFTING MOTOR | POWER FOR DAILY PALLET HANDLING

The 2.2 kW lifting motor provides the lifting power for the EB14C range. It works with the electric drive system to support regular loading, unloading, stacking and warehouse handling tasks.

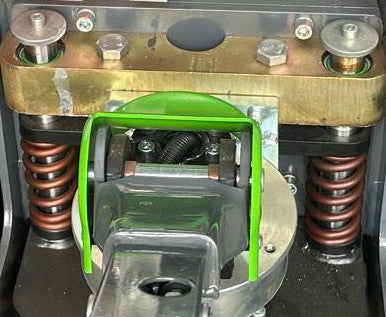

DUAL DAMPING DRIVE SYSTEM | SMOOTHER MATERIAL HANDLING

The dual damping drive system is designed to improve handling performance, operational efficiency and operator comfort. This helps make repeated material handling work easier to manage throughout the day.

CURTIS INSTRUMENT CONTROLLER | CONTROL THE ELECTRIC DRIVE SYSTEM

The Curtis Instrument Controller manages the machine's electric drive system. It provides the electronic control needed for the EB14C's powered operation.

45.3 INCH FORKS | CONSISTENT LOAD SUPPORT ACROSS THE RANGE

All four EB14C configurations use 45.3-inch forks. The forks have a 4-inch single-fork width and adjust from 8.7 to 32.1 inches to provide flexibility when positioning loads.

FEATURES AND BENEFITS

• 3,000 lb load capacity: Provides consistent lifting capacity across all four EB14C configurations.
• Four lifting-height options: Choose from 98, 118, 138 or 145 inches based on your required vertical reach.
• 24V/50Ah lithium battery: Provides electric power for daily material handling work.
• DC drive motor: Provides powered movement for warehouse and material handling applications.
• 2.2 kW lifting motor: Provides the lifting power required for pallet handling and stacking.
• Adjustable forks: Adjust from 8.7 to 32.1 inches for greater load-positioning flexibility.
• Adjustable straddle legs: Adjust from 35.4 to 51.2 inches to suit different material-handling requirements.
• 45.3-inch fork length: Provides consistent fork reach across the EB14C range.
• 2.6-inch lowered fork height: Provides a low fork position for pallet entry.
• Curtis Instrument Controller: Manages the machine's electric drive system.
• Polyurethane wheels: Form part of the electric straddle stacker configuration.
• Dual damping drive system: Is designed to improve handling performance, efficiency and operator comfort.

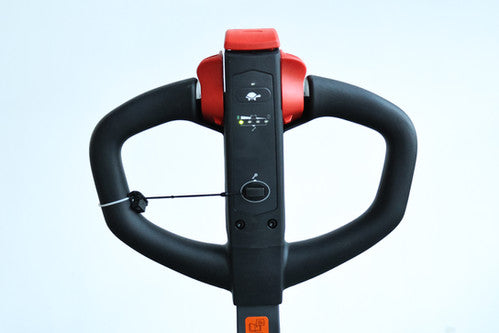

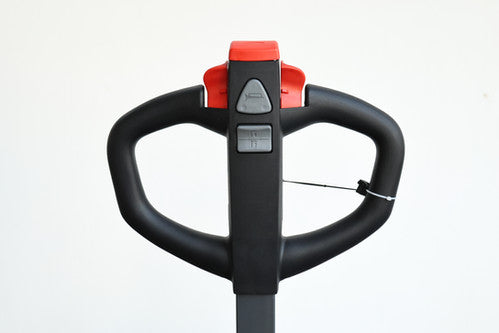

• Ergonomic handle and controls: Gives the operator straightforward control during material handling work.
• Steel construction: Provides a solid machine structure for regular warehouse use.
• 24V/20A internal charger: Provides integrated charging capability for the lithium battery.
• Multi-purpose design: Combines forklift, reach truck and walkie stacker functions in one machine.

SPECIFICATIONS

CONFIGURATIONS AND LIFTING HEIGHTS

WHERE THE EKKO EB14C FITS

The EKKO EB14C is designed for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehouse applications. Its straddle legs, adjustable forks and four lifting-height configurations give operators the flexibility to match the machine to different material-handling needs.
