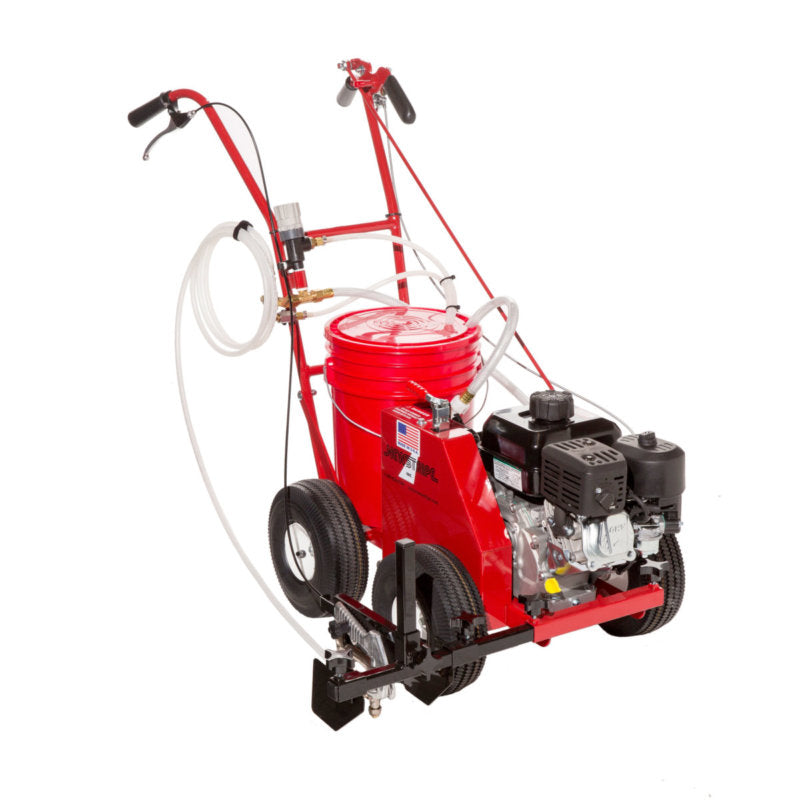

EcoLiner SP Self-Propelled Field Striping Machine

SELF-PROPELLED DRIVE REDUCES PUSHING AND OPERATOR FATIGUE

The Newstripe EcoLiner SP Self-Propelled Field Striping Machine helps athletic-field crews mark playing surfaces with less physical effort. Its friction-drive system moves the machine across uneven ground and up inclines, making it a practical choice for schools, parks departments, sports complexes and youth leagues that regularly maintain large grass fields.

5-GALLON PAINT CAPACITY FOR EFFICIENT FIELD MARKING

Place a standard 5-gallon pail of premixed athletic field paint directly on the machine and get started without transferring paint into a separate tank. The included pail simplifies preparation, while the removable design makes it easier to manage leftover paint after the job is finished.

RECIRCULATING PUMP HELPS KEEP PAINT MIXED

The recirculating pump continuously mixes the paint to help prevent settling during operation. This reduces the need to stop and stir manually, helping your crew maintain a more consistent workflow while striping field boundaries, playing lines and practice areas.

LOW-PRESSURE SPRAYING FOR ATHLETIC FIELD PAINT

The 1.8 GPM low-pressure spray pump is designed specifically for athletic-field marking. The EcoLiner SP performs best with thinned athletic field paint, making it suitable for routine sports-ground preparation. Its straightforward spray system helps keep operation and maintenance manageable for groundskeeping teams.

DETACHABLE SPRAY GUN FOR STENCILS AND DETAIL WORK

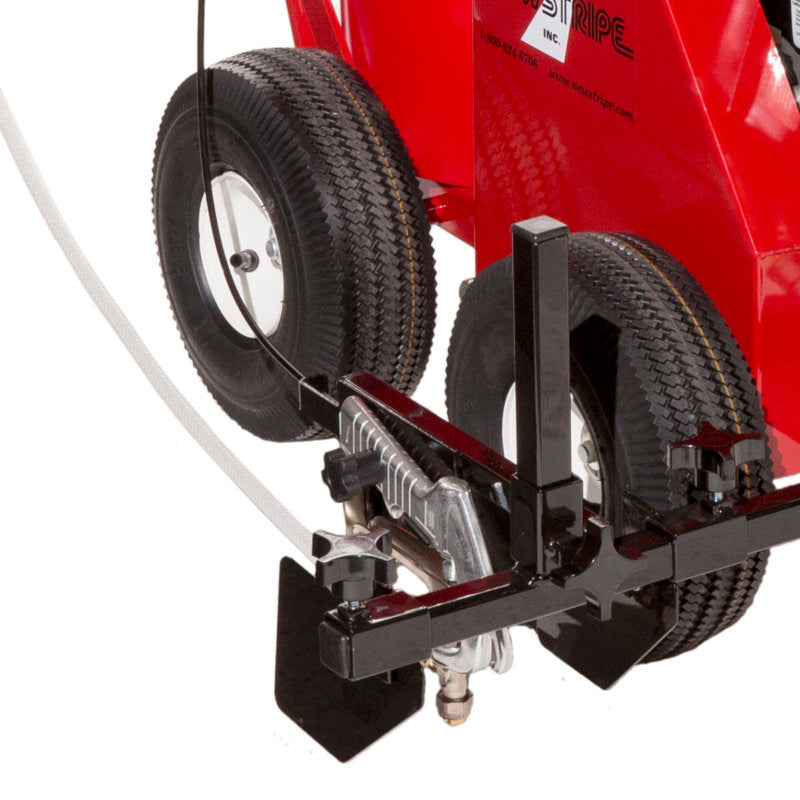

Use the detachable spray gun to mark stencils, corners and areas that are difficult to reach with the main spray position. The included 12-foot extension hose provides additional reach, while adjustable line widths from 2 to 6 inches support different athletic-field marking requirements.

QUICK CLEANUP WITHOUT A PRESSURISED PAINT TANK

When striping is complete, remove the paint pail, reseal any unused paint and flush the system with clean water. The machine does not use a hazardous pressurised paint tank, so there is no tank pressure to release before adding paint or cleaning. This simple process helps prepare the striper for its next job.

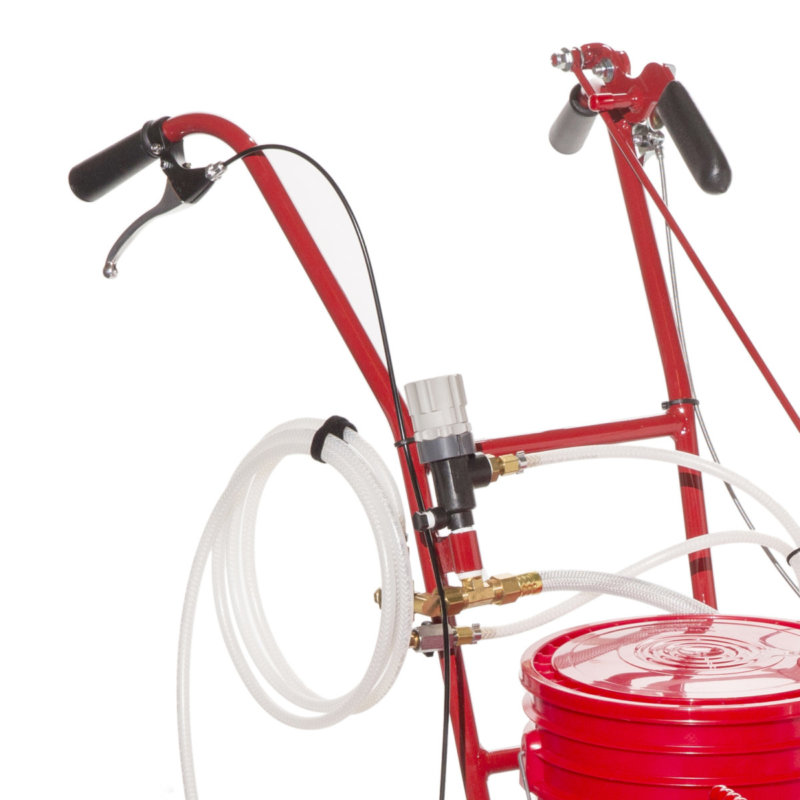

REPLACEABLE INTAKE FILTER HELPS PREVENT CLOGS

The large, replaceable foot filter on the intake hose helps catch debris before it reaches the spray system. Newstripe states that cleaning the filter takes less than 30 seconds, helping reduce interruptions and keep routine maintenance simple.

CHOOSE THE ENGINE THAT SUITS YOUR CREW

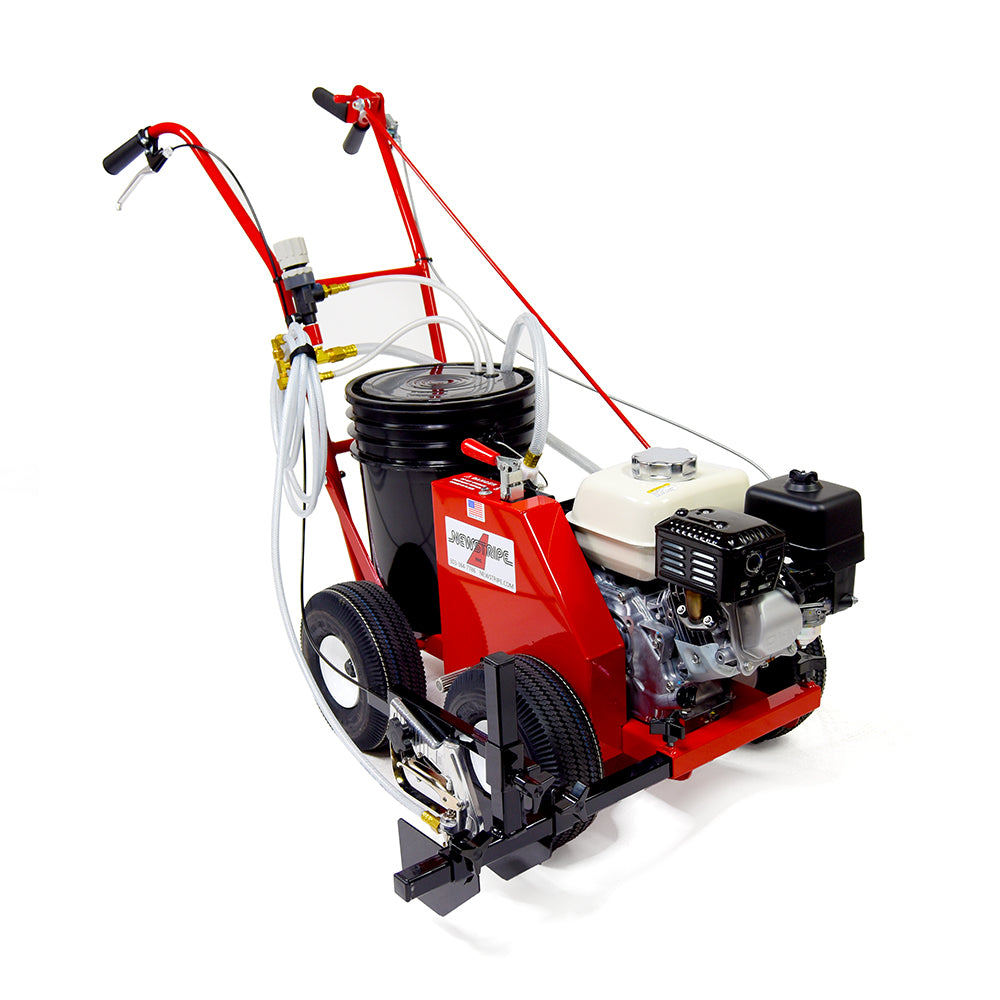

The EcoLiner SP is available with a Briggs & Stratton XR 550 engine or an upgraded Honda GX120 engine. Both options power the machine's friction-drive system and low-pressure spray pump, allowing facilities to choose their preferred engine configuration for recurring field-marking work.

WELDED STEEL CONSTRUCTION WITH A 24-MONTH WARRANTY

Built with an all-welded steel frame and quality components, the EcoLiner SP is designed for repeated athletic-field maintenance. Its self-propelled drive, practical paint handling and straightforward cleaning process make it a useful addition to school, park and sports-facility equipment fleets.

FEATURES AND BENEFITS

• Self-Propelled Friction Drive: Reduces the need to push the machine across fields and helps it travel over uneven ground and up inclines.
• Choice of Engine: Available with a Briggs & Stratton XR 550 engine or upgraded Honda GX120 engine.
• 5-Gallon Paint Capacity: Uses a standard pail of premixed athletic field paint, with a pail included.
• Recirculating Pump: Continuously mixes paint to help prevent settling and reduce manual stirring stops.
• Low-Pressure Spray System: Delivers a flow rate of 1.8 GPM for athletic-field striping.
• Detachable Spray Gun: Supports stencils, corners and detailed field marking.
• 12-Foot Extension Hose: Provides additional reach for areas away from the main spray position.
• Adjustable Line Width: Supports 2- to 6-inch markings.
• Replaceable Intake Filter: Helps catch debris and can be cleaned in less than 30 seconds.
• Simple Cleanup: Flushes with clean water without the need to release pressure from a paint tank.
• Welded Steel Construction: Provides a durable frame for regular field-maintenance work.
• USA Manufacturing: Made in the United States and backed by a 24-month warranty.

SPECIFICATIONS

Downloads

• EcoLiner SP Manual (08/26)
• EcoLiner SP with Honda Engine Manual (08/26)
• EcoLiner SP Product Sheet (05/25)
• EcoLiner SP with Honda Engine Product Sheet (05/25)
• Paint-to-Striper Recommendations Flyer (11/25)

Free shipping is available. A lead time of approximately 4 business days before shipment.

24 Month Manufacturer Warranty

A 30-days return and refund policy
