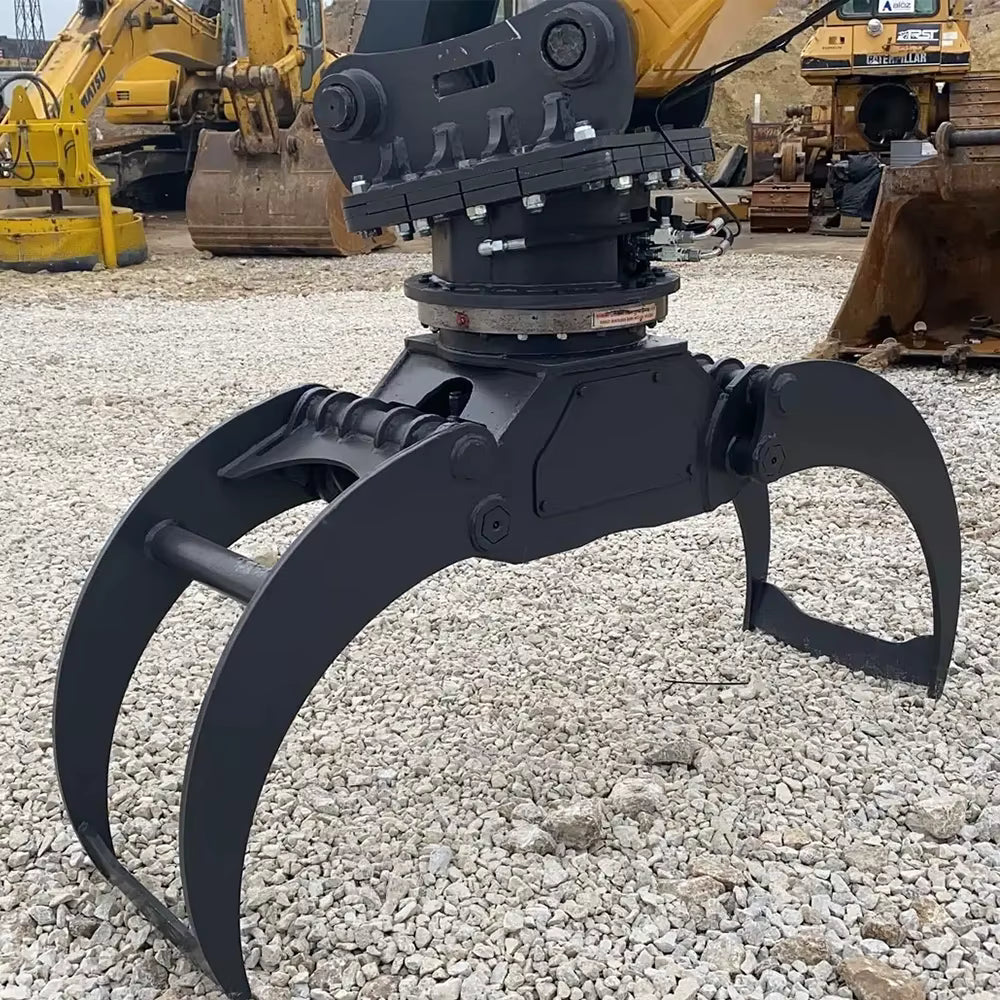

The Arclen MG-80 is a compact hydraulic grapple engineered for operators who need full power in tight spaces. Designed for mini excavators between 1 and 8 tons, it combines precision control with heavy-duty build quality — giving you a secure grip on logs, stone, and demolition debris without sacrificing agility.
Twin hydraulic cylinders deliver synchronized motion to each tine, providing smooth and even clamping pressure. The narrow frame and low profile make it ideal for urban worksites, landscaping, and small-scale demolition where larger attachments can’t fit.
The MG-80’s high-strength steel body and replaceable tips ensure long-term durability even under demanding conditions. Integrated hose protection and heavy-duty pivot bushings reduce maintenance downtime, keeping you productive day after day.
Key Features
-
Dual hydraulic cylinders for balanced, even clamping power
-
High-strength alloy steel frame with replaceable wear tips
-
Narrow, low-profile design for confined or precision work
-
Integrated hose guards and pivot protection
-
Compatible with quick-attach systems for fast swaps
-
Ideal for forestry, landscaping, and light demolition
Specifications
-
Model: MG-80
-
Excavator Range: 1–8 Tons
-
Operating Weight: 210 kg
-
Max Opening Width: 730 mm
-
Clamp Force: 45 kN
-
Rotation: Fixed (optional 360° hydraulic available)
-
Material: Hardened Q355 steel
-
Cylinder Pressure: 160 bar
Applications
Landscaping, rock handling, log loading, debris sorting, and precision material placement.
