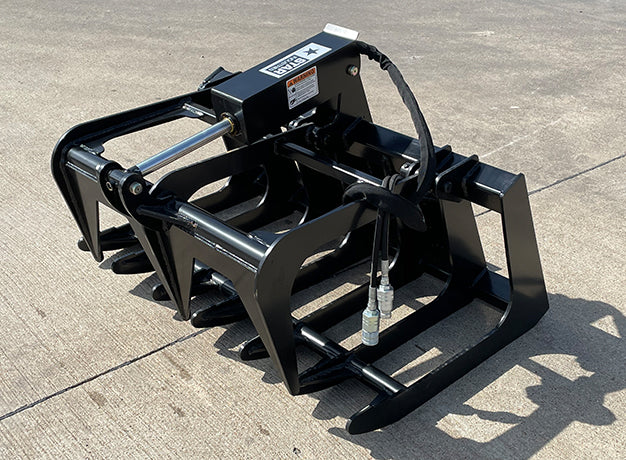

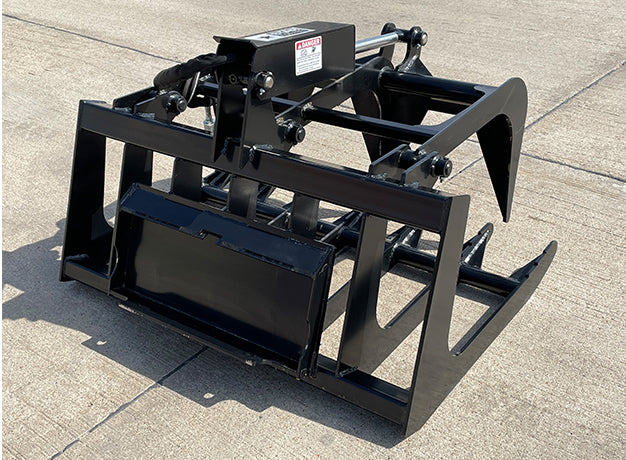

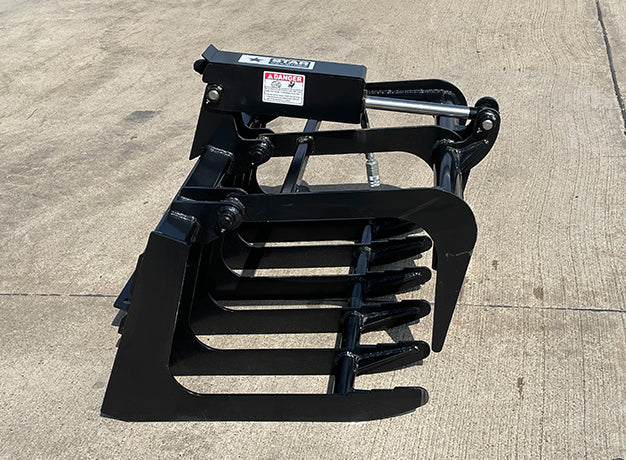

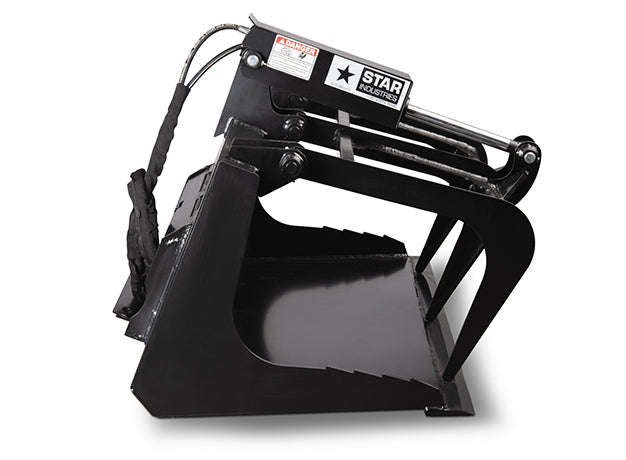

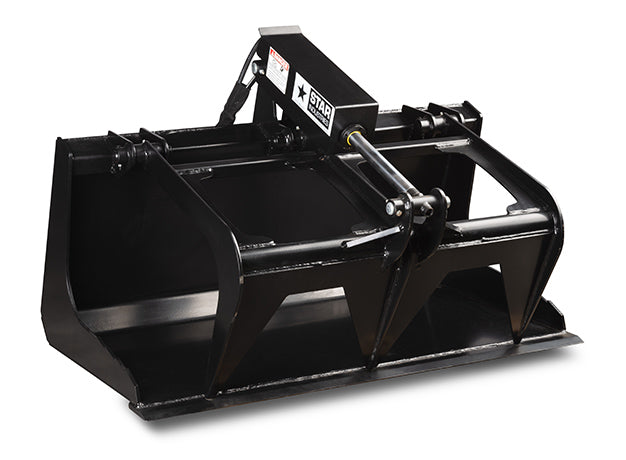

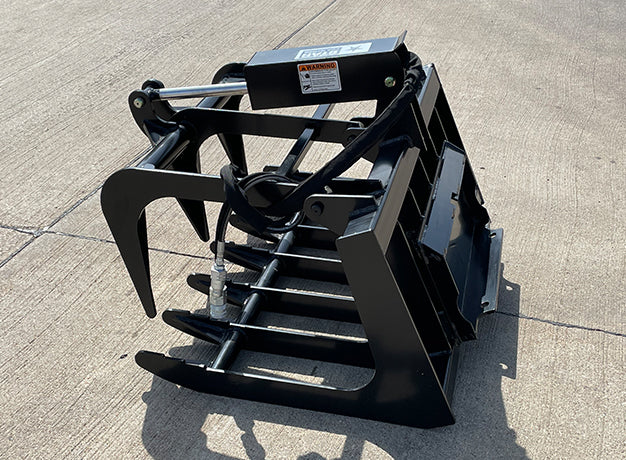

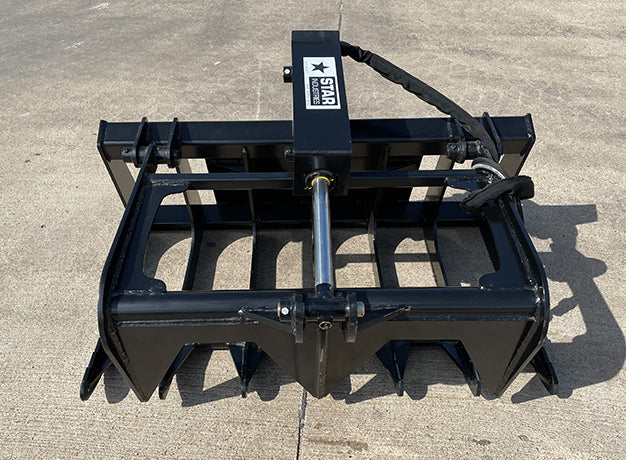

Mini Skid-Steer Grapple Buckets

  • 170-MI-44: Fits Dingo, Ditchwitch, Vermeer, Boxer, and Ramrod – Empty weight 245 lbs

  • 175-MI-44: Fits Dingo, Ditchwitch, Vermeer, Boxer, and Ramrod – Empty weight 263 lbs


Specifications:

  • Width: 44” O.D.

  • Hydraulic Cylinder: 2” Bore x 10” Stroke

  • Grapple Tines: 5/16” thick

  • Maximum Grapple Opening: 30”

  • Overall Depth: 35 ¾” (Grapple Bucket), 35 ½” (Root Grapple)

  • Overall Height: 27 ¾” (Grapple Bucket), 26” (Root Grapple)

  • Bucket Height: 21” (Grapple Bucket), 20” (Root Grapple)

  • Bucket Depth: 26 3/8” (Grapple Bucket), N/A (Root Grapple)

  • Pivot Pins: 1” DIA, grease fittings on all pivot points

  • Hydraulic Hoses: Protective sleeves on all lines

  • Hydraulic Quick-Disconnects: ½” flat body couplers included
