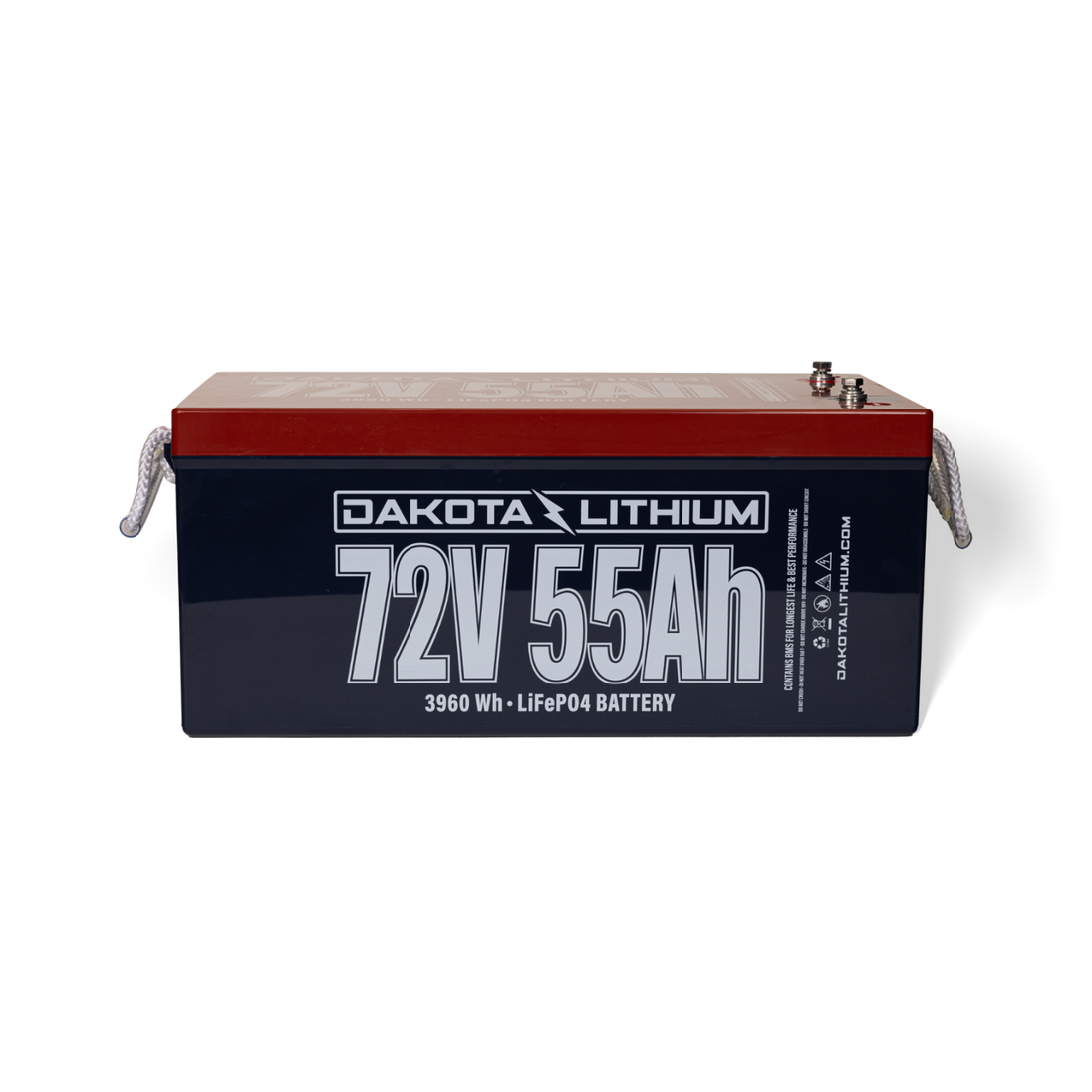

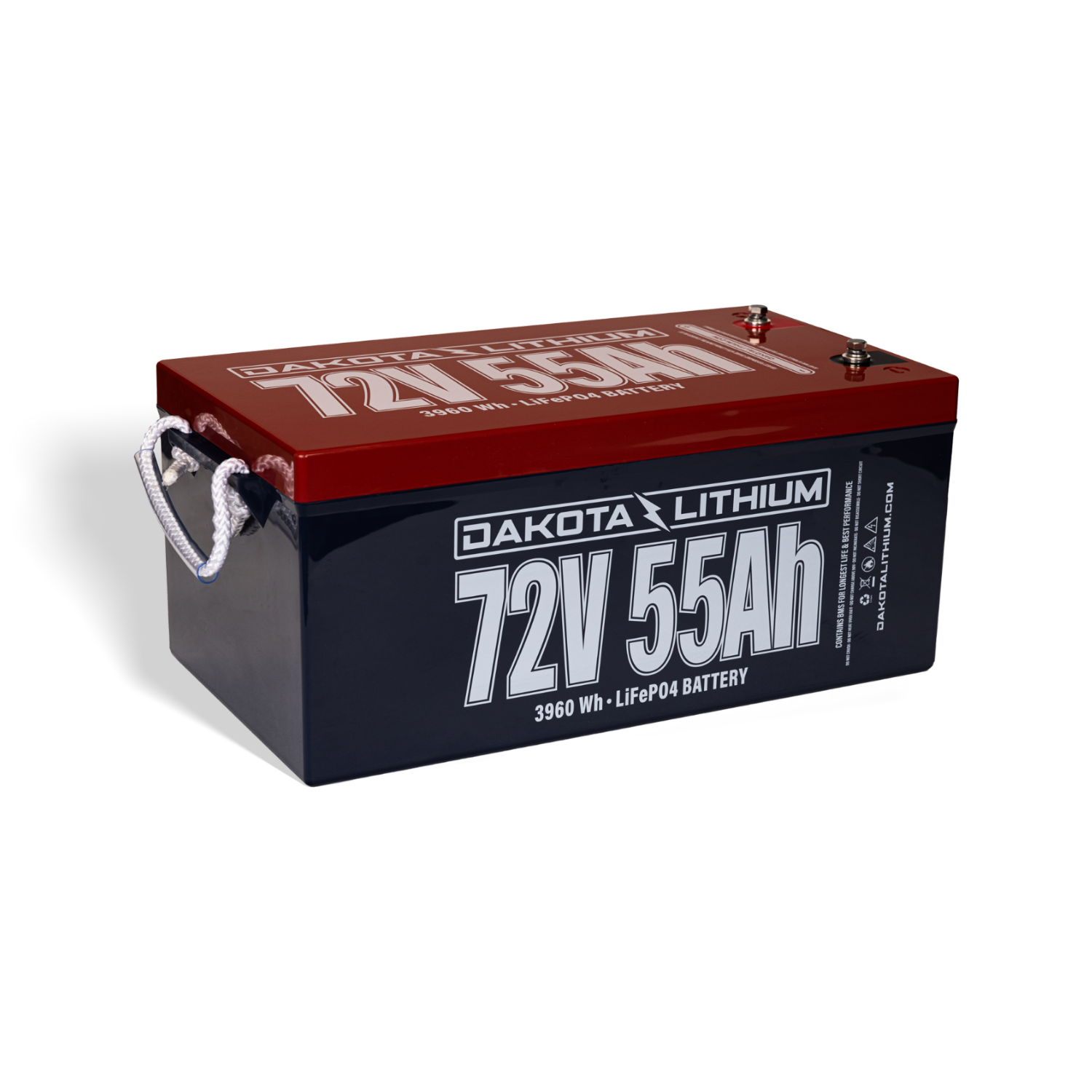

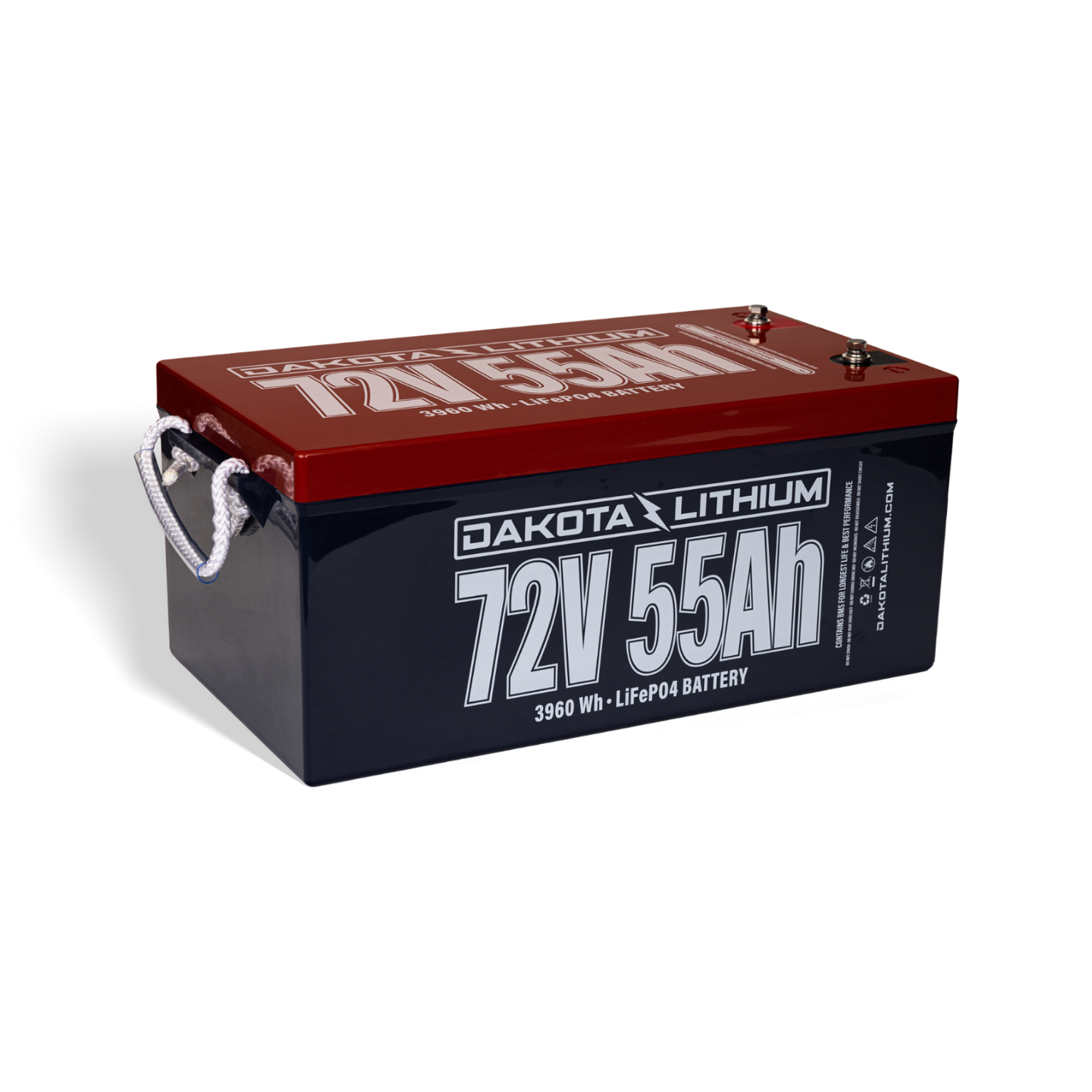

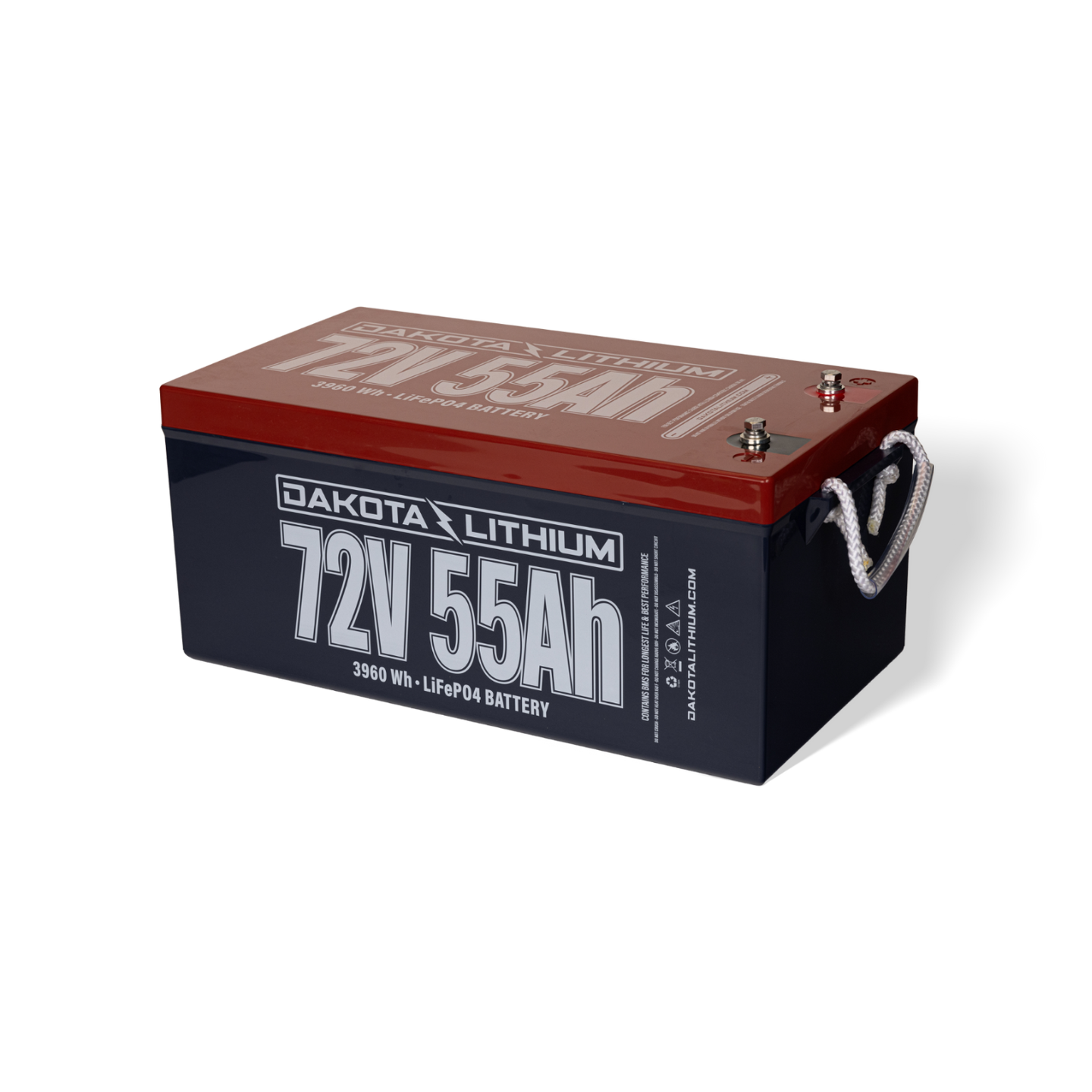

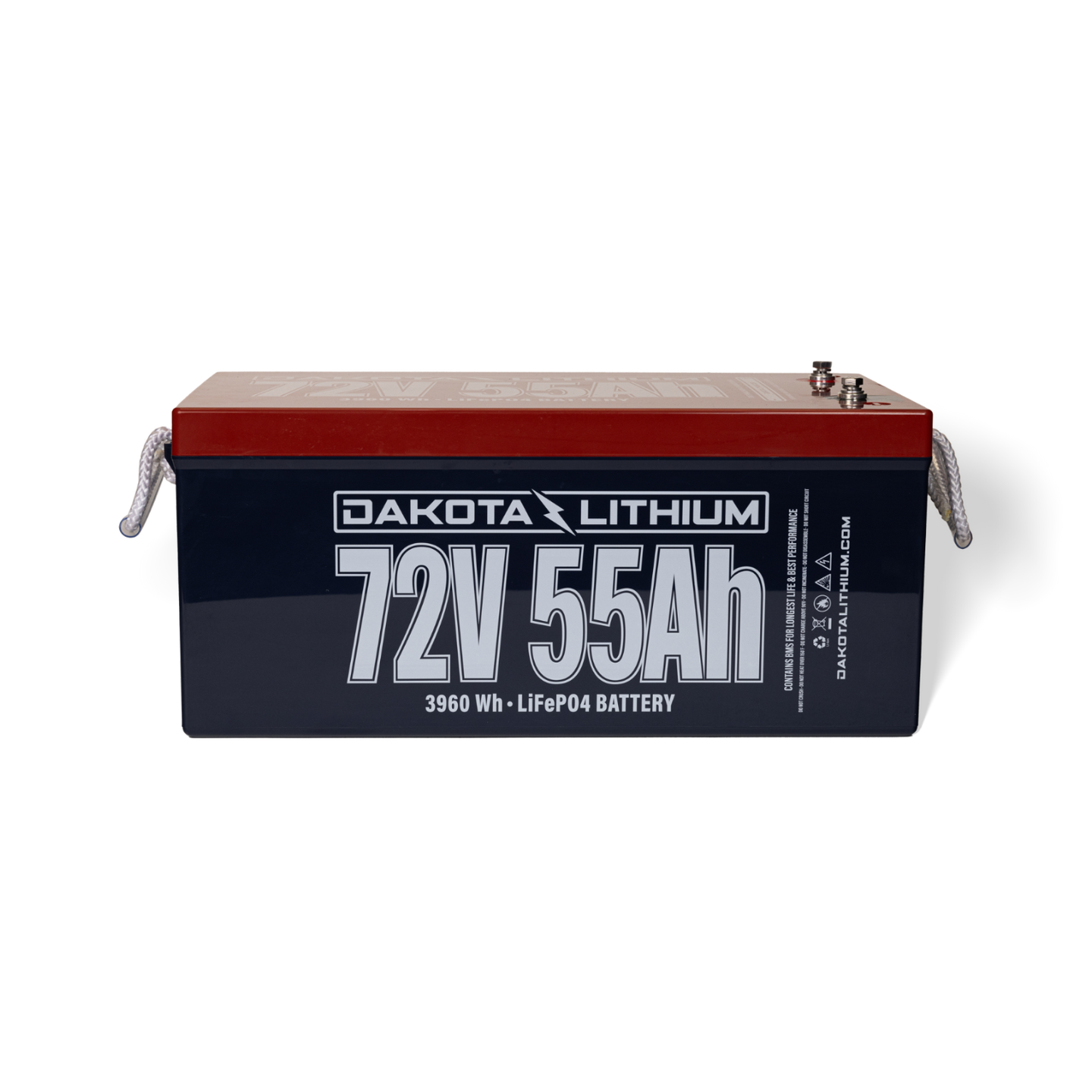

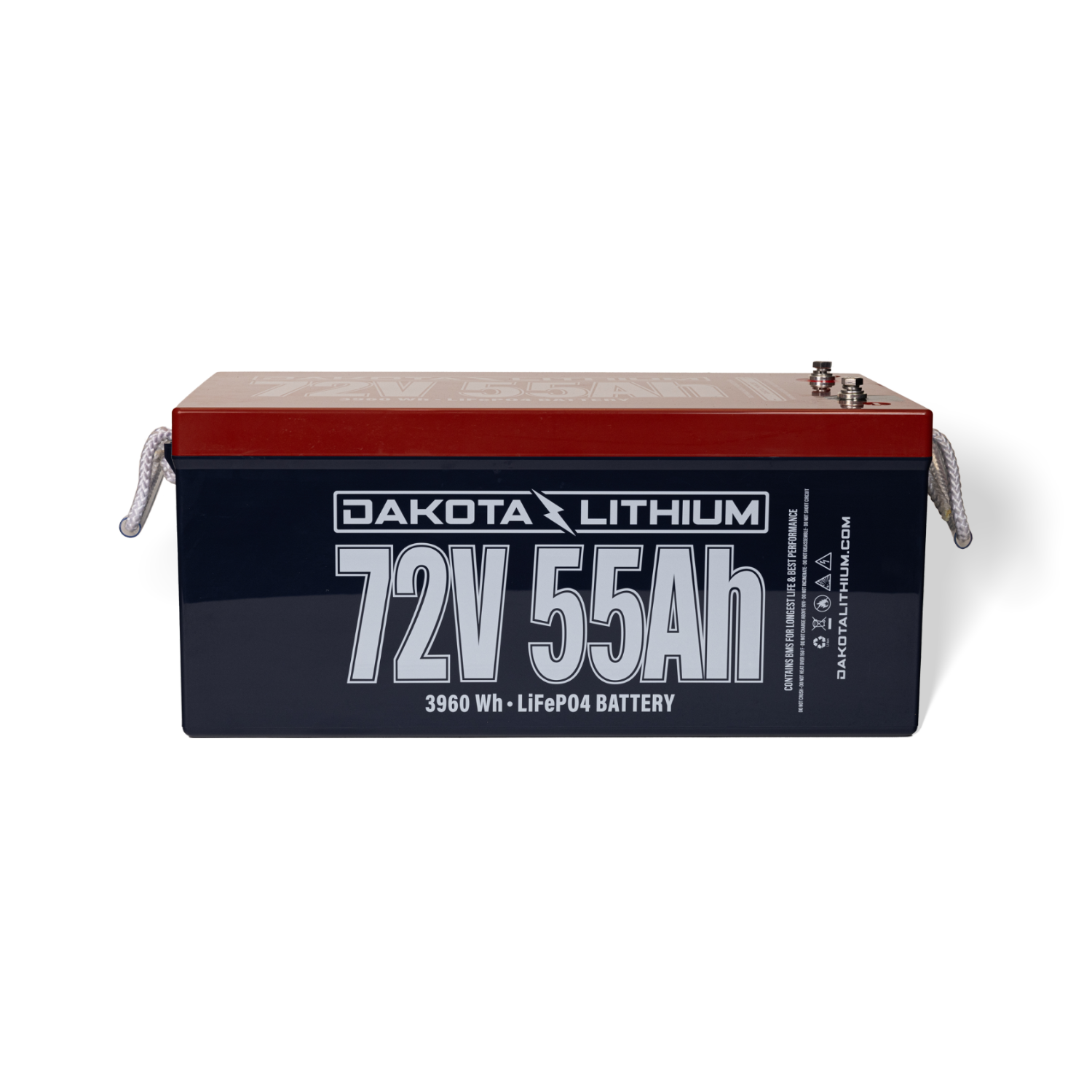

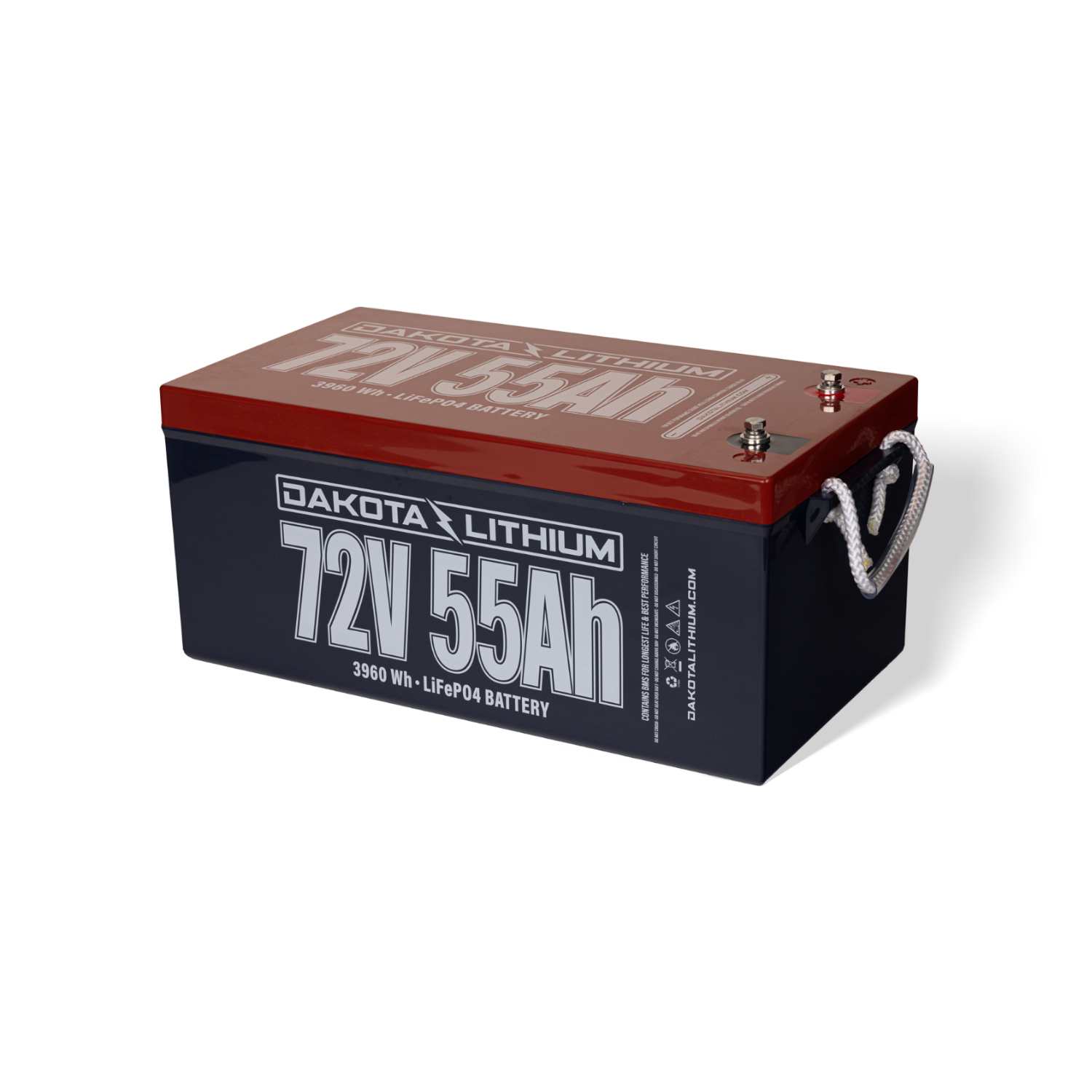

Dakota 72V 55Ah Deep Cycle LiFePO4 Battery

KEY SPECIFICATIONS

● Application: 72V electric vehicles, golf carts, outboard motors, and high-voltage EV systems
● Battery Type: Lithium Iron Phosphate (LiFePO4)
● Nominal Voltage: 72V
● Capacity: 55Ah usable
● Energy: 3,960Wh
● Cycle Life: Up to 5,000 cycles at 80% capacity
● Weight: 88.1 lbs / 40 kg
● Dimensions: 20.5"L × 10.5"W × 8.62"H
● Terminals: M8 bolt-style
● Certifications: UN 38.3, UL1642 tested cells, IEC62133 evaluated
● Manufacturing Standard: ISO 9001:2015

HIGH-VOLTAGE POWER WITHOUT THE WEIGHT

The Dakota 72V 55Ah Deep Cycle LiFePO4 Battery is engineered for high-performance electric vehicles that demand more power, longer range, and maximum efficiency. Designed as a direct replacement for traditional 72V lead-acid systems, it delivers triple the usable power at a fraction of the weight—transforming speed, handling, and overall performance.

Whether you’re upgrading a golf cart, electric utility vehicle, or outboard motor, this battery provides consistent voltage, rapid acceleration, and dependable energy from start to finish.

FEATURES & BENEFITS

• Lightweight Performance Upgrade: At roughly one-third the weight of lead-acid alternatives, this battery dramatically improves efficiency, speed, and handling while reducing overall system strain.
• Long Service Life: With up to eight times the lifespan of traditional lead-acid batteries and up to 5,000 charge cycles, it offers exceptional long-term value and reliability.
• Scalable Power System: Supports up to 10 batteries in parallel, allowing you to increase range or output for higher-demand controllers and applications.
• Steady Voltage Delivery: A flat voltage curve ensures consistent power output across the entire discharge cycle—no performance drop as the battery drains.
• Built-In Safety & Protection: Integrated Battery Management System (BMS) provides cell balancing, over-voltage and under-voltage protection, temperature monitoring, and short-circuit protection.
• Drop-In Compatibility: Designed to integrate seamlessly into most existing 72V systems, simplifying installation and upgrades.

PARALLEL CONFIGURATION GUIDELINES

● 100A–250A controllers: 2 batteries recommended
● 250A–350A controllers: 3 batteries recommended
● Most 72V golf carts can accommodate three or more units for extended range and power

TECHNICAL PERFORMANCE

● Discharge Rating: 60A continuous, 120A for 30 seconds
● Charge Rating: 30A max, 86.4V recommended
● Operating Temperature: -20°F to 120°F (charging above 32°F required)

BUILT TO PROFESSIONAL STANDARDS

Manufactured with UL-tested cells and internationally certified safety standards, the Dakota 72V 55Ah battery is designed for serious electric mobility applications where performance, durability, and safety are non-negotiable.

POWER YOUR NEXT LEVEL UPGRADE

Choose the Dakota 72V 55Ah Deep Cycle LiFePO4 Battery to unlock lighter weight, longer runtime, and professional-grade reliability—engineered to push your electric vehicle further, faster, and longer.
