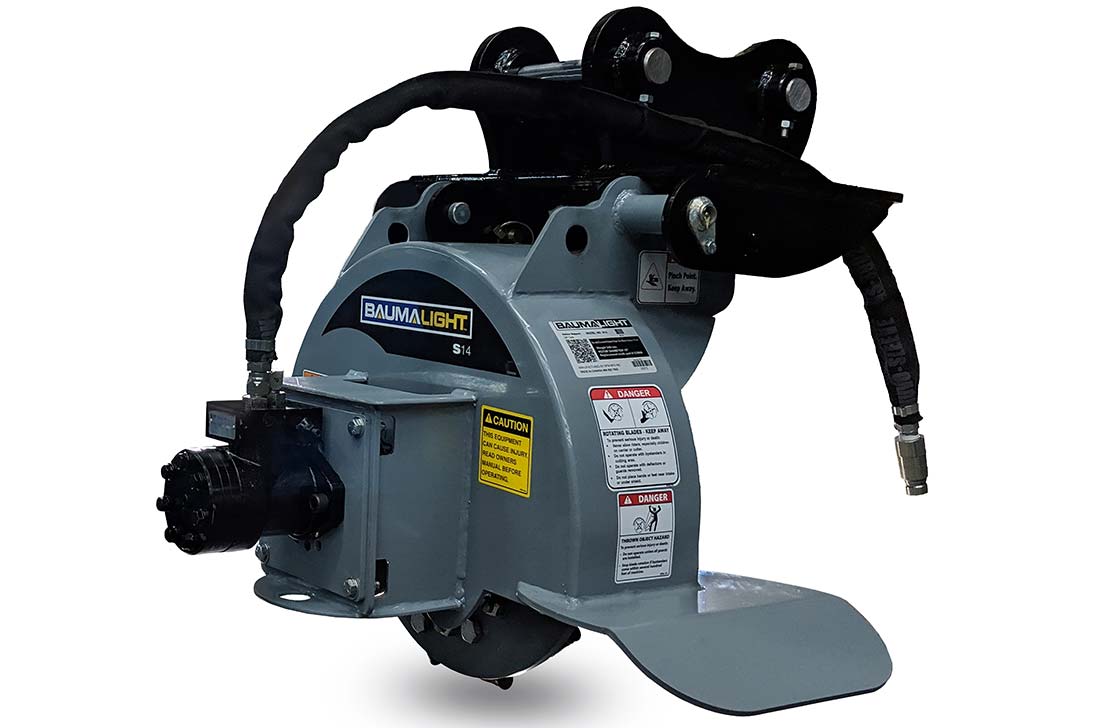

Baumalight S14 Mini Skid Steer Stump Grinder

KEY SPECIFICATIONS

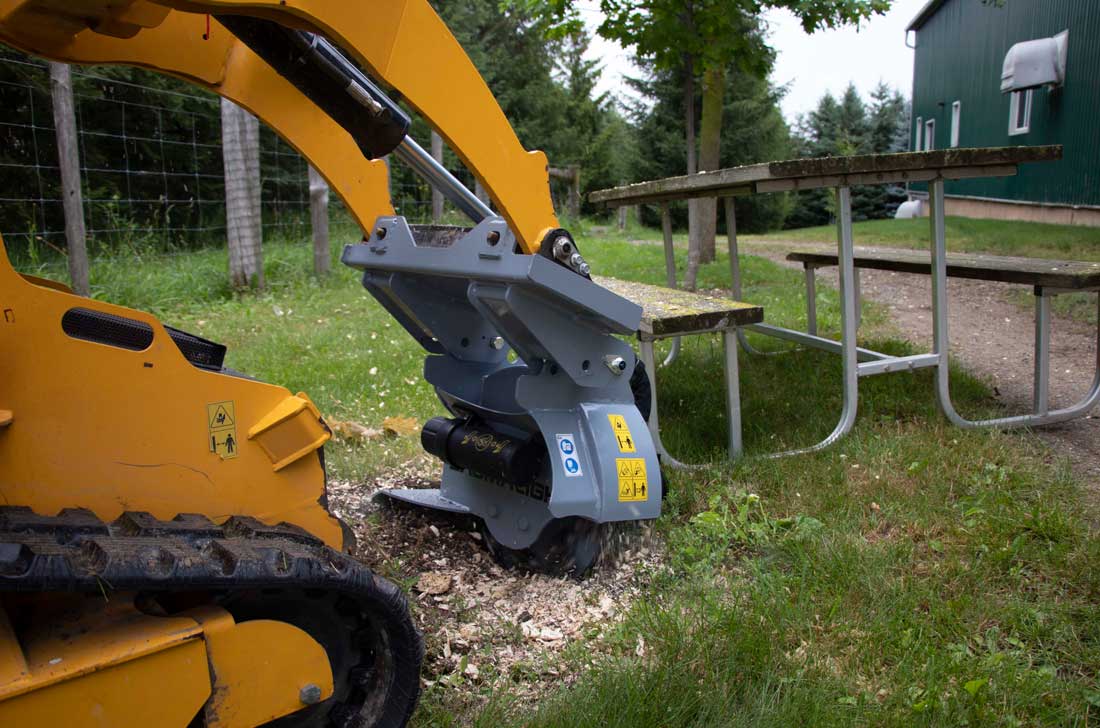

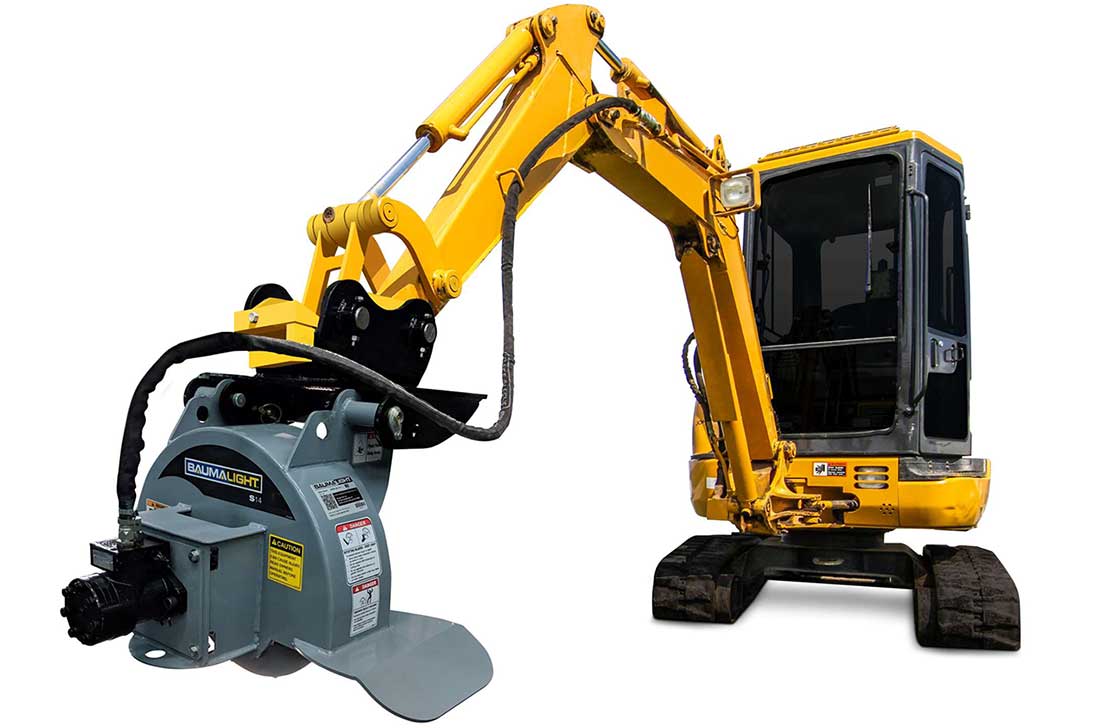

● Mount Type: Mini skid steer / 1" pivot pin mount (excavator-style plate)
● Recommended Carrier Size: Mini skid steer (verify hydraulic GPM & PSI)

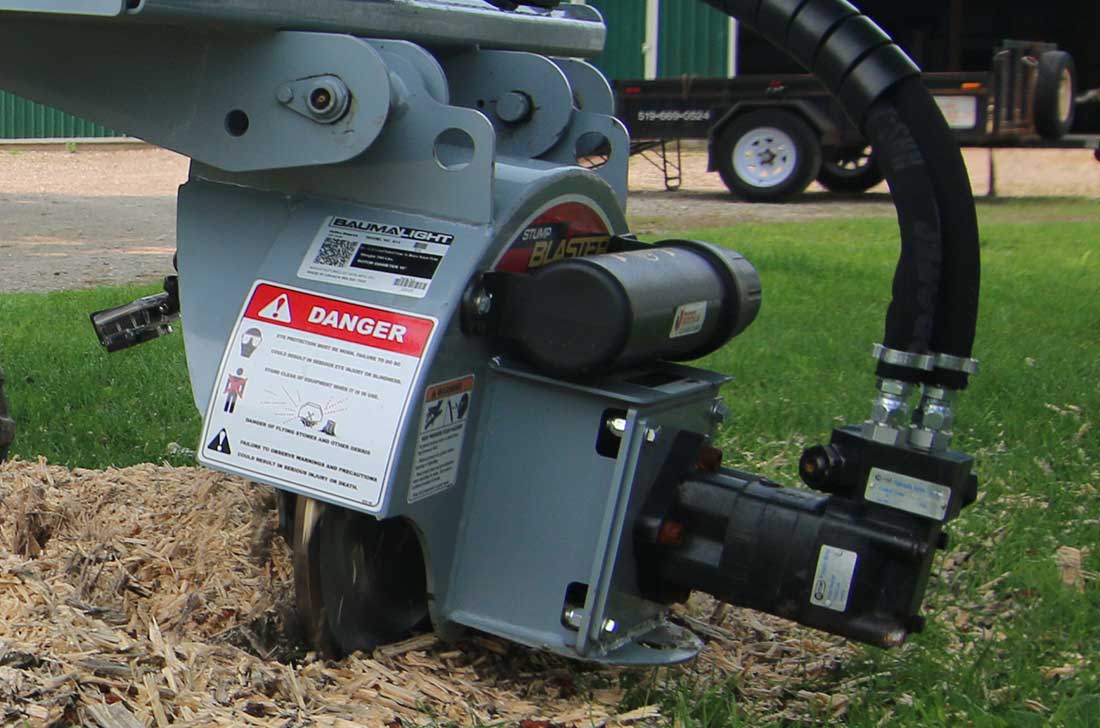

● Hydraulic Drive: Direct flow hydraulic motor (Gerotor)
● Hydraulic Remotes Required: 1
● Electrical Requirement: None
● Rotor Size: 18 inch diameter
● Rotor Thickness: ½ inch heavy steel
● Number of Teeth: 12 high-speed round carbide teeth
● Tooth Part Number: H3000
● Cutting Depth Below Ground: Up to 6 inches
● Maximum Cutting Depth Per Pass: 2 inches
● Maximum Horizontal Cut: 12 inches
● Swing Arc: Self-feeding
● Over Torque Protection: Hydraulic relief valve
● Shipping Weight: 394 lbs

COMPACT POWER FOR TIGHT ACCESS STUMP REMOVAL

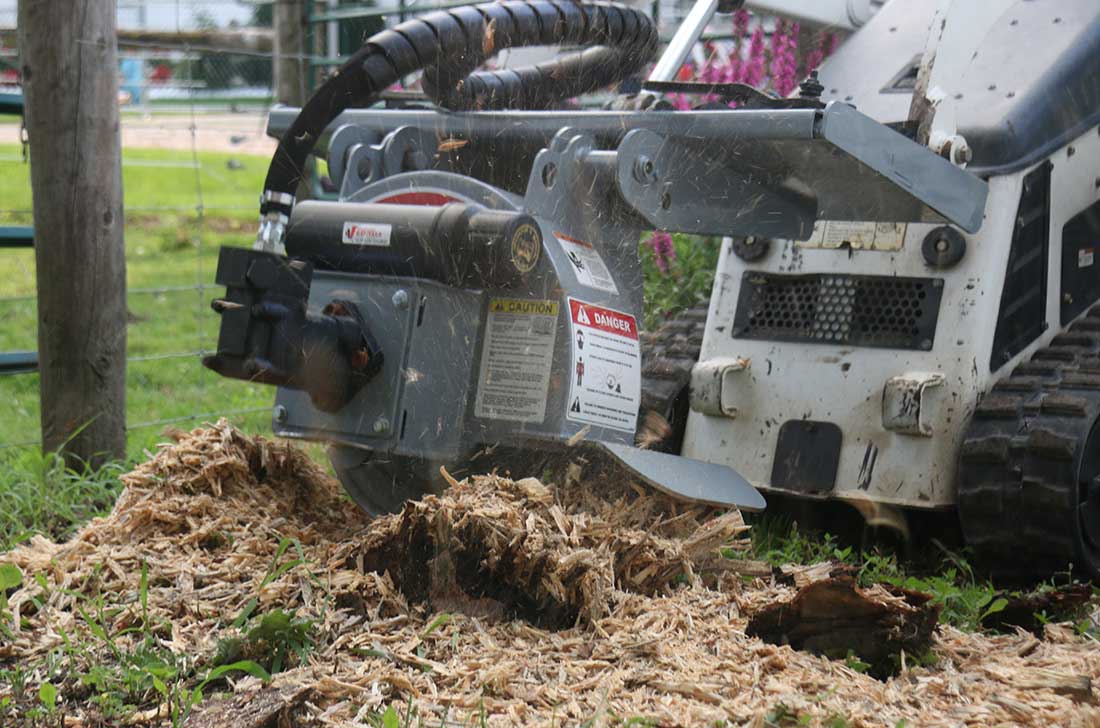

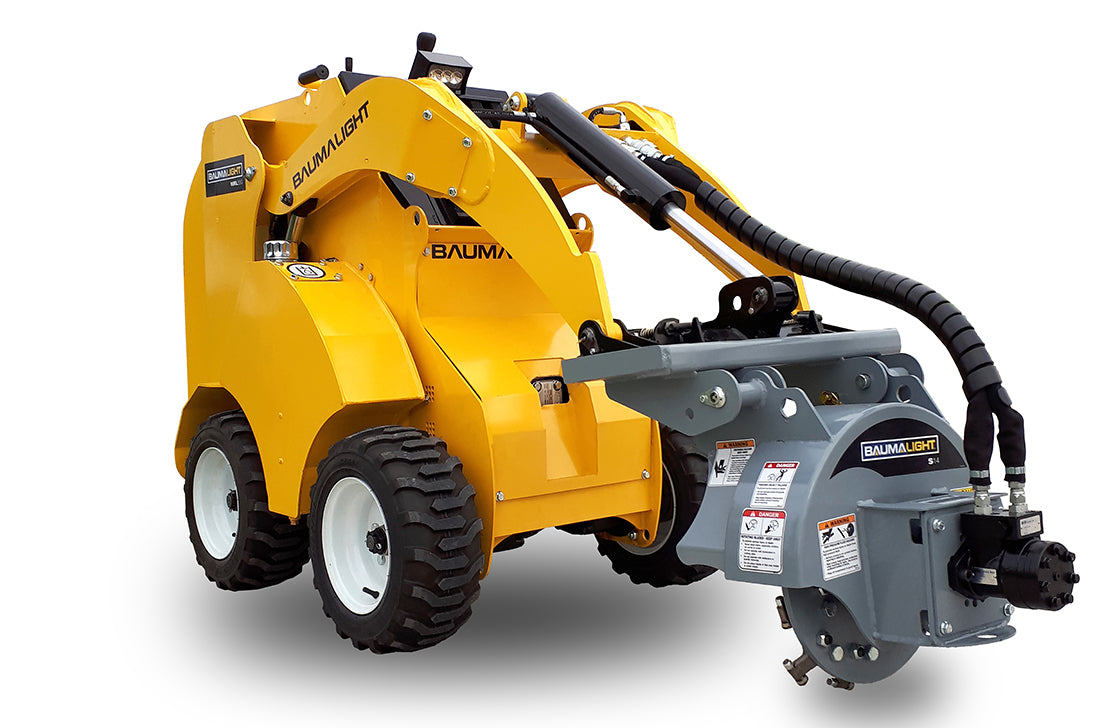

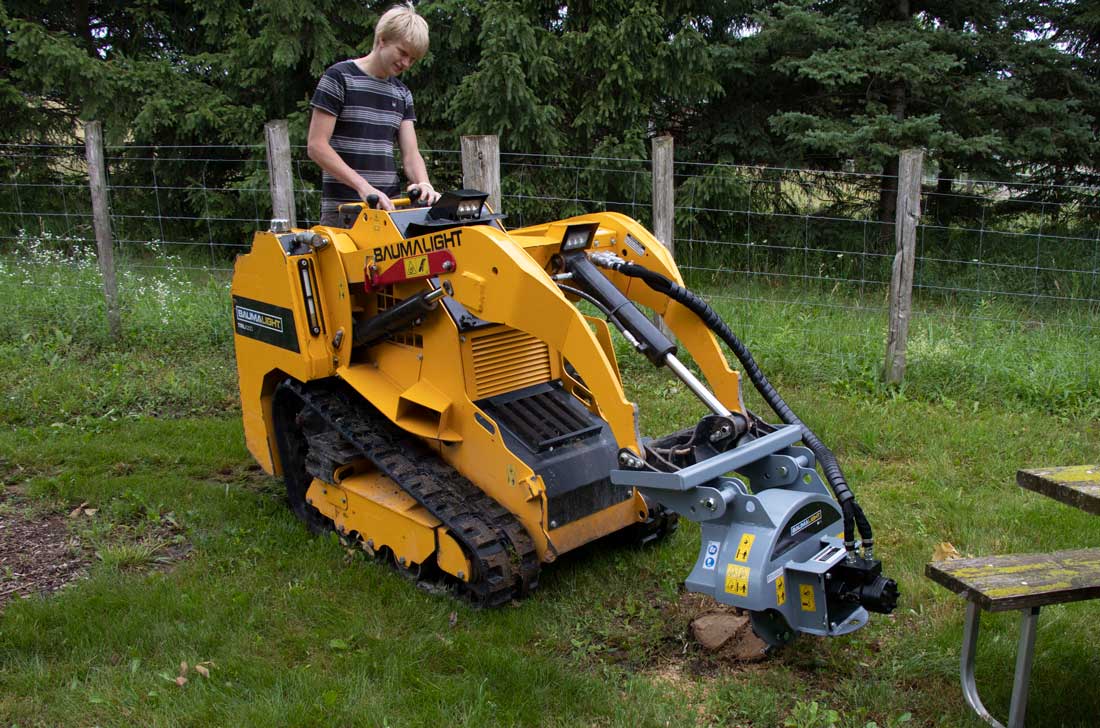

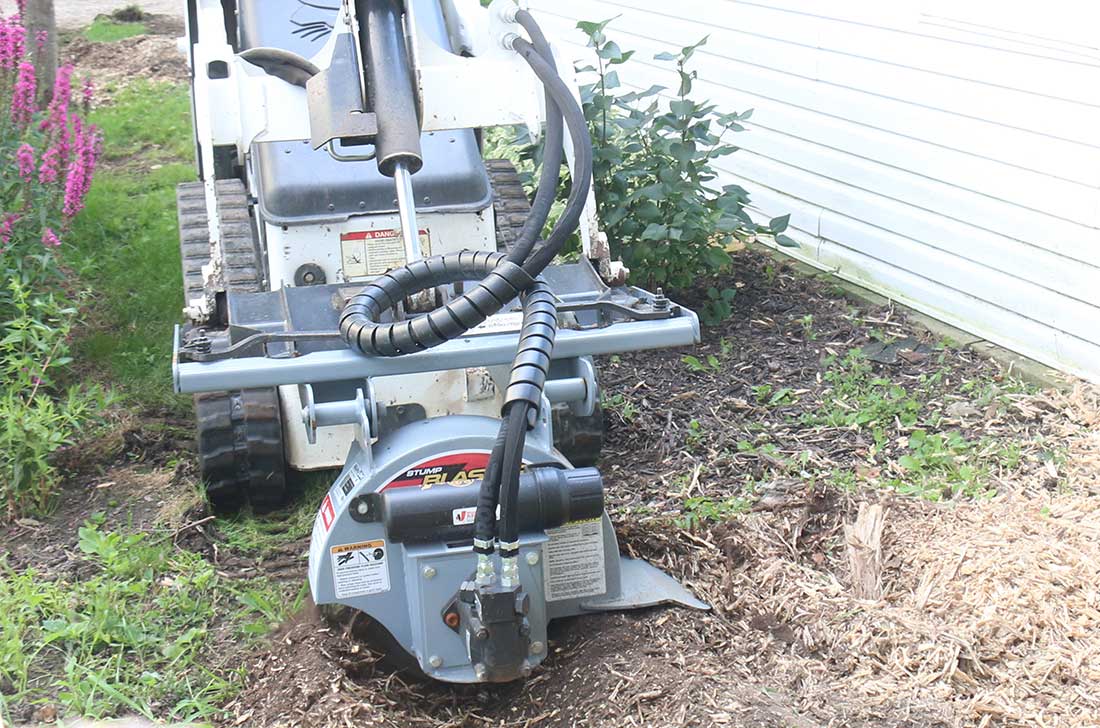

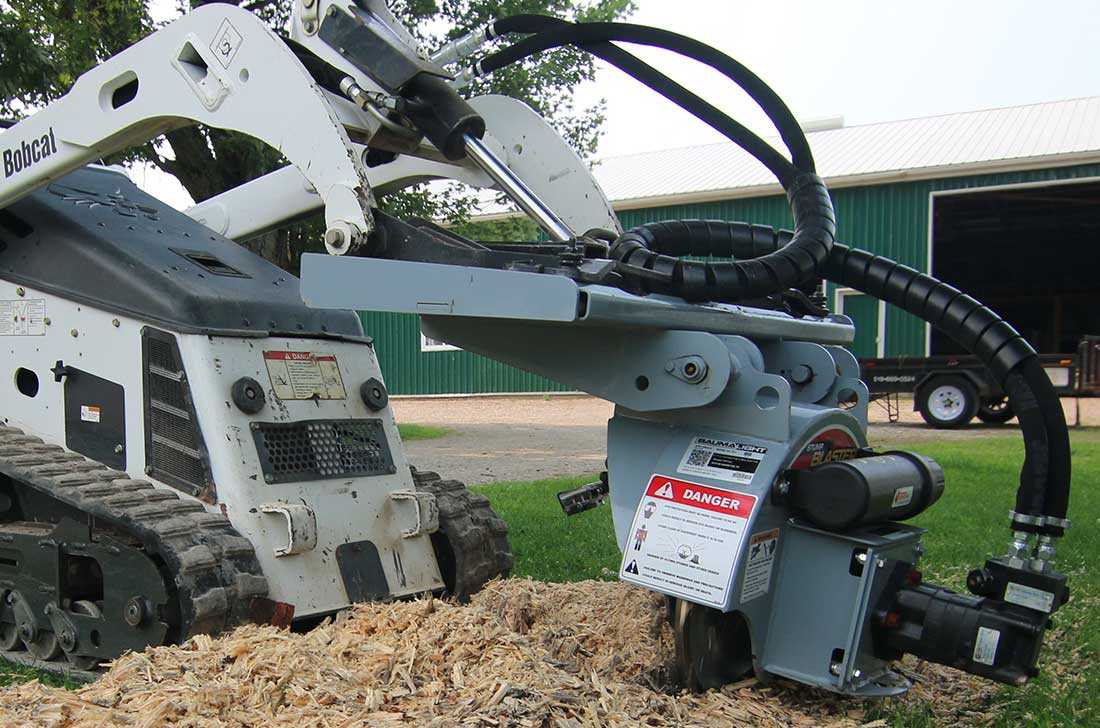

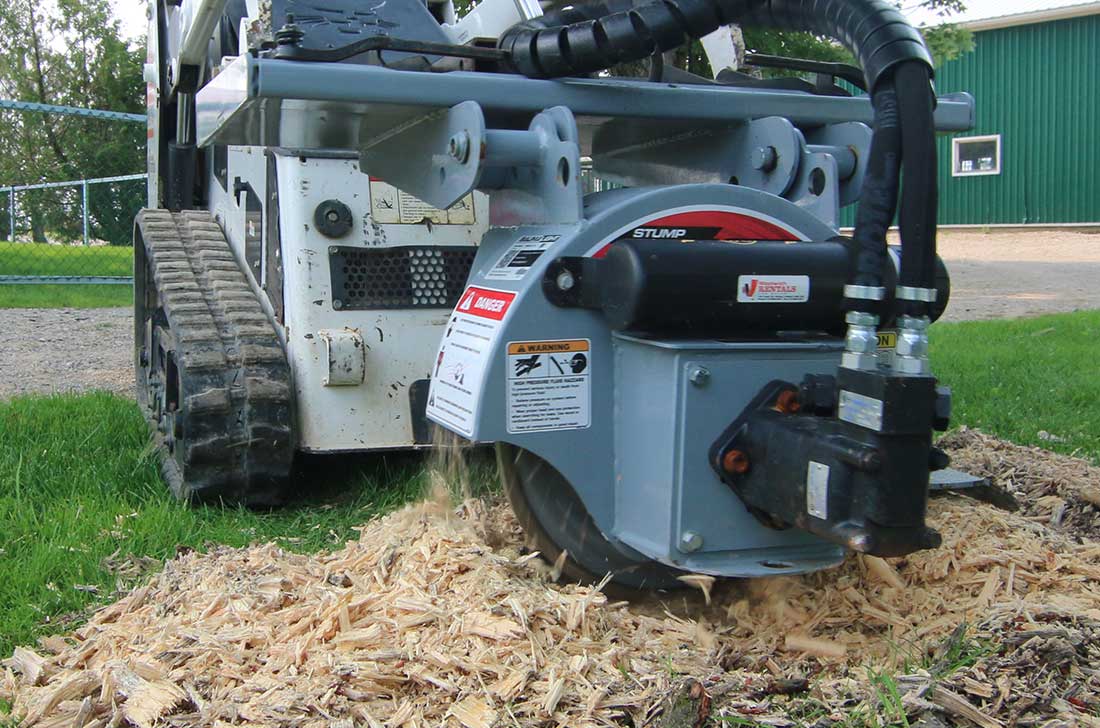

The Baumalight S14 Mini Skid Steer Stump Grinder is built for operators who need reliable stump grinding performance in confined spaces. Designed specifically for mini skid steers and compact tool carriers, the S14 delivers excellent cutting power on low hydraulic flow while maintaining simple, rugged operation with no electrical connections required.

Its compact size makes it ideal for residential properties, fenced yards, pathways, and rental fleets where access and ease of use matter most.

FEATURES & BENEFITS

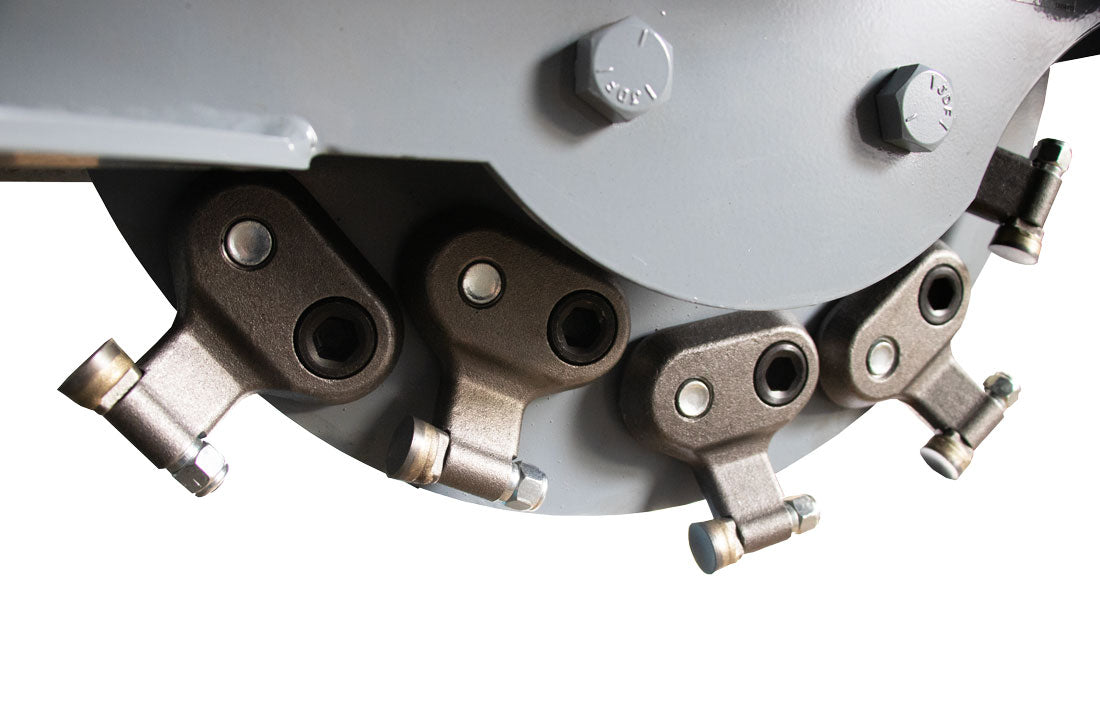

• High Speed Rotatable Carbide Teeth: The S14 uses round high-speed carbide teeth that feature three usable cutting edges per tooth. Simply rotate the tooth to a fresh edge to extend service life and reduce operating costs.

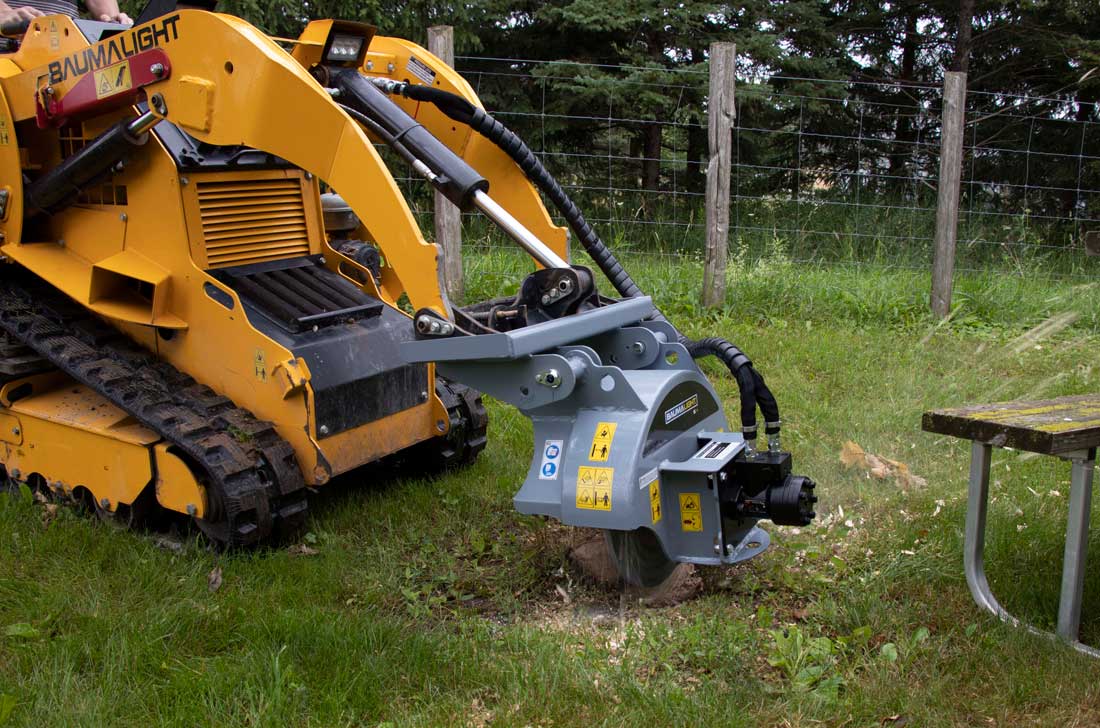

• Direct Flow Hydraulic Drive: Hydraulic power is delivered straight to the cutting head with no diversion to swing cylinders, maximizing torque and RPM for efficient grinding even on low-flow machines.
• Excellent Operator Visibility: The rotor positioning provides a clear view of the cutting area, improving precision, safety, and overall control.
• Heavy-Duty ½ Inch Steel Rotor: The solid steel rotor provides rigidity and added momentum, ensuring smooth operation and consistent cutting without flexing under load.
• Improved Chip Clearance: Teeth extend 1¼ inches from the rotor, preventing material buildup, reducing heat, and improving overall grinding efficiency.
• Self-Feeding Design: Natural self-feeding action helps regulate cutting pressure, allowing smooth controlled grinding with minimal operator effort.

DESIGNED FOR DURABILITY AND EASY MAINTENANCE

Bolt-on teeth allow for fast, straightforward replacement, typically requiring only a few teeth at a time. Zinc-plated greaseable pins help prevent corrosion and ensure smooth long-term operation. Each unit includes a free set of six replacement teeth conveniently stored in a protected compartment on the frame.

IDEAL FOR RENTAL FLEETS AND PROFESSIONAL USE

With its compact footprint, durable construction, and efficient cutting system, the Baumalight S14 is an excellent stump grinder for rental operations, landscapers, and contractors who need dependable performance in tight spaces. It delivers professional results while remaining easy to operate, maintain, and transport.
